Triple O Salvage Project - Pu'uoma'o Yard Office and Observation Tower

Update:

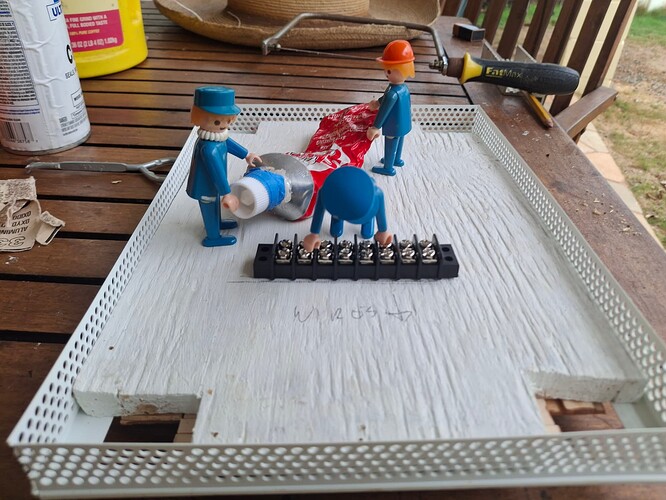

The 1:24 lads and I had a go at this today. Frist, we mounted this doo-hicky to the underside of the roof to
accommodate the wires.

For now, I used Shoo Goo to hold in place. I found appropriate wood screws later, which will go in tomorrow.

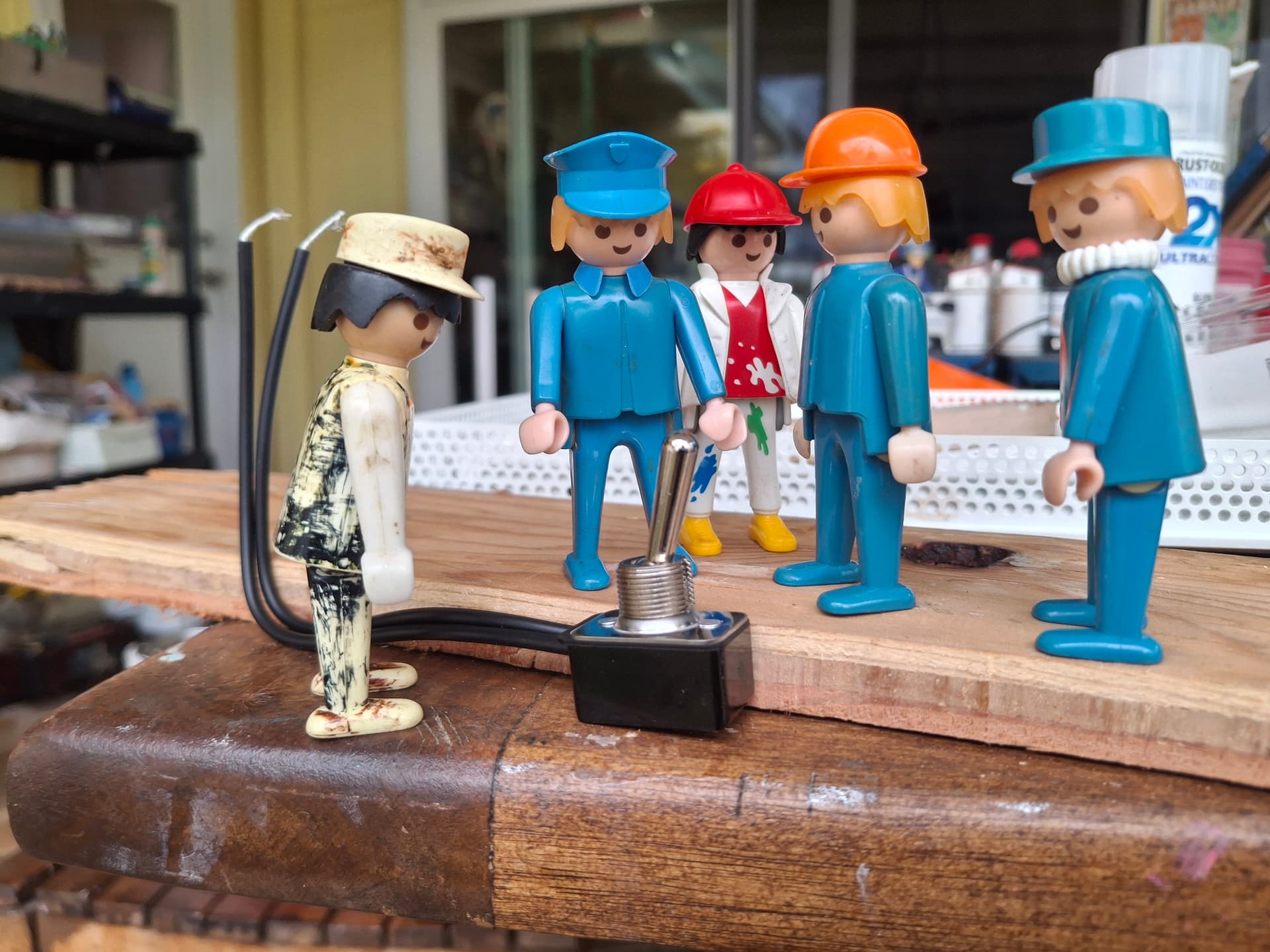

Next, we had to figure out how to mount the power switches. You’ll note from the photo below they are just too short to allow me to bore a hole in the roof.

I thought about carving out a puka for each switch, but I am sure I could neither make them square, flat, nor of even depth.

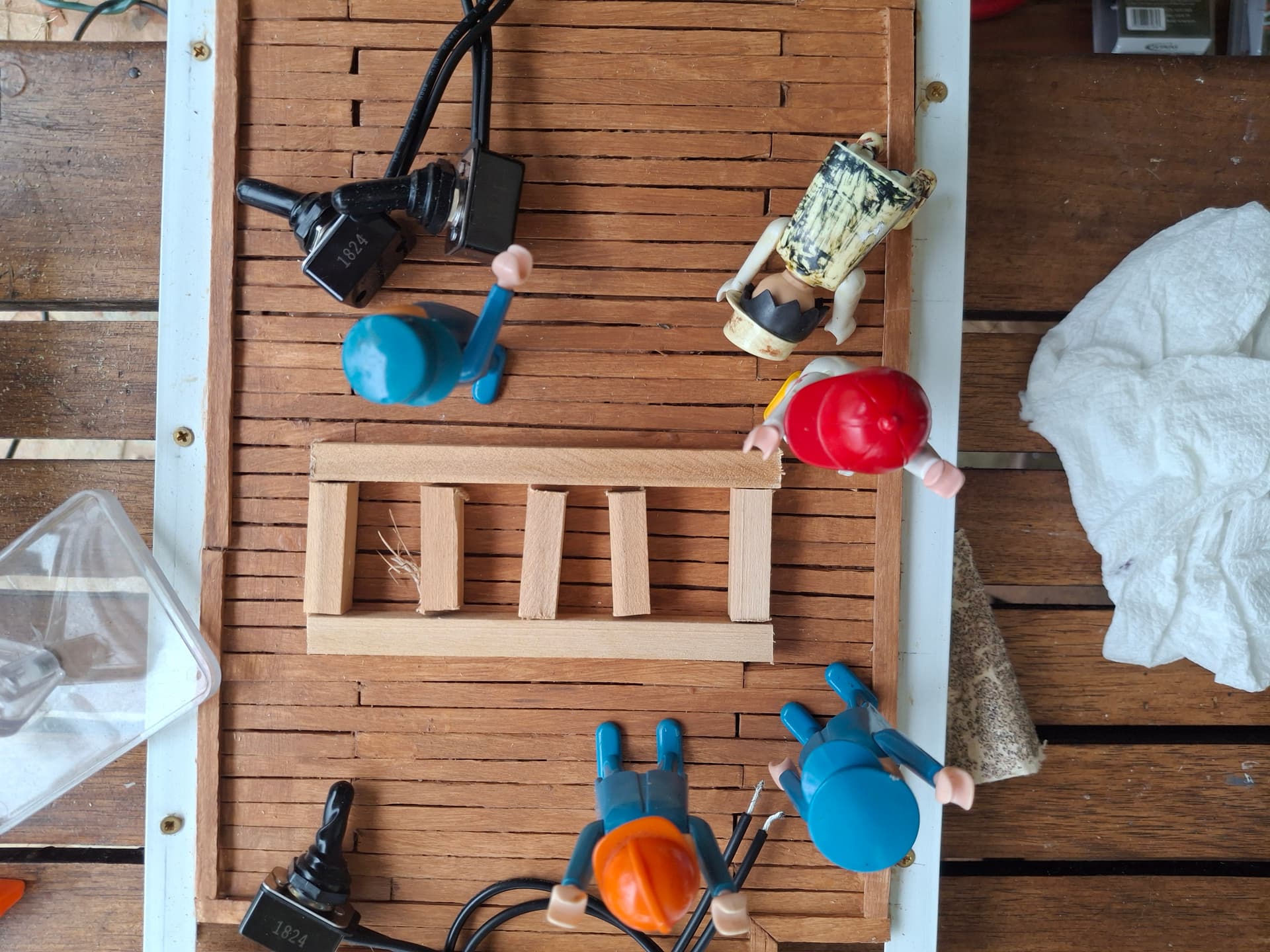

The final solution had to be repairable yet durable, so we rejected just gluing switches to the deck. Instead, we embarked upon an effort to build “tubs” for each switch so that they could bear the forward and aft stress of use yet be easily removed for replacement.

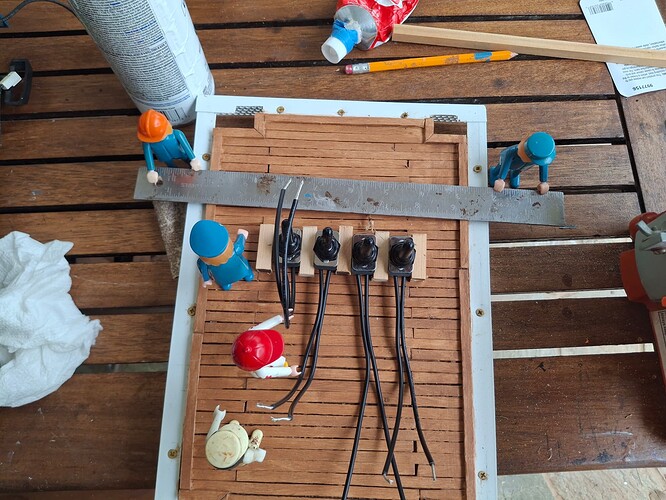

We carefully measure the timbers…

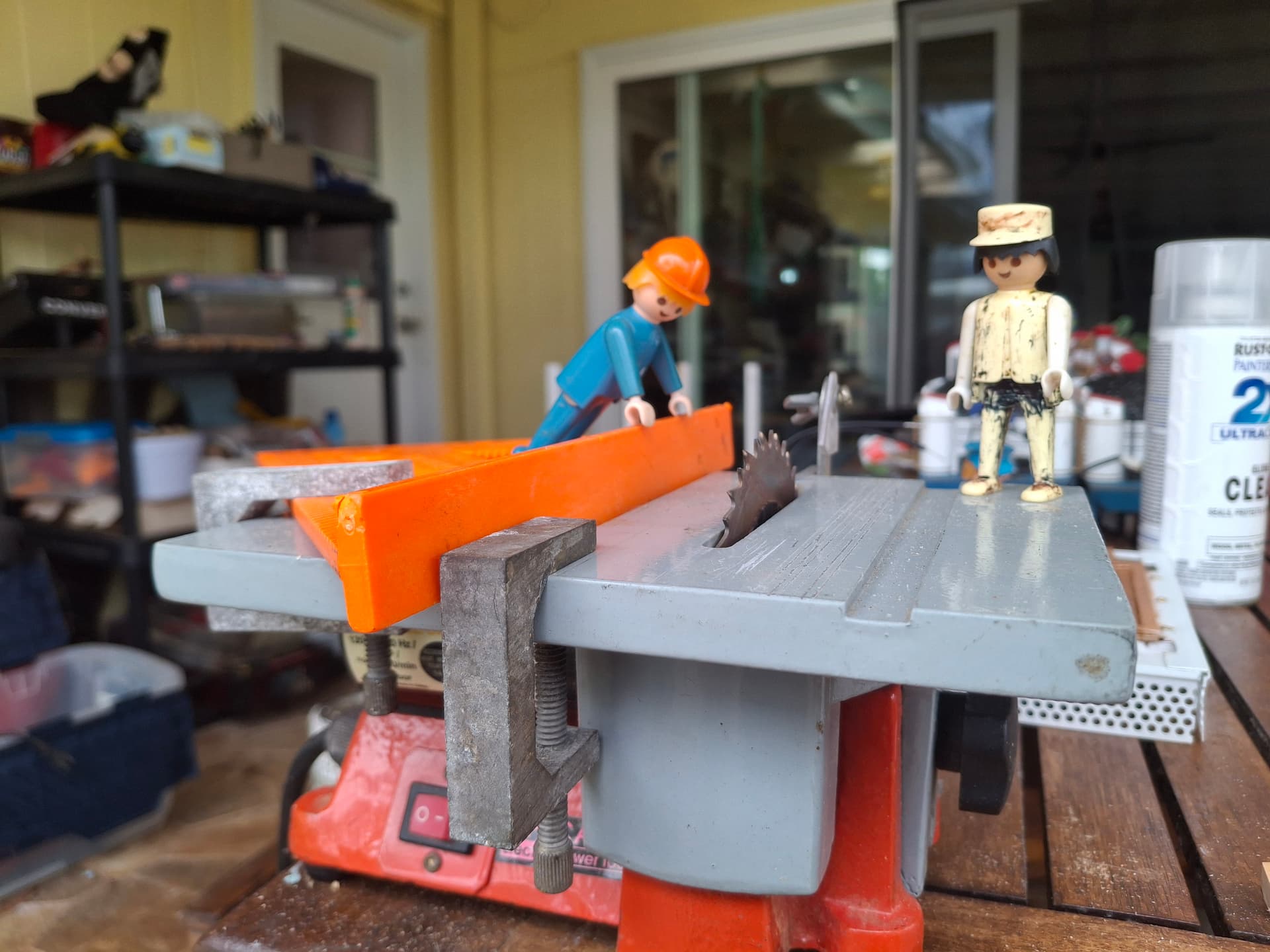

…and used carefully executed guard to ensure even cuts…

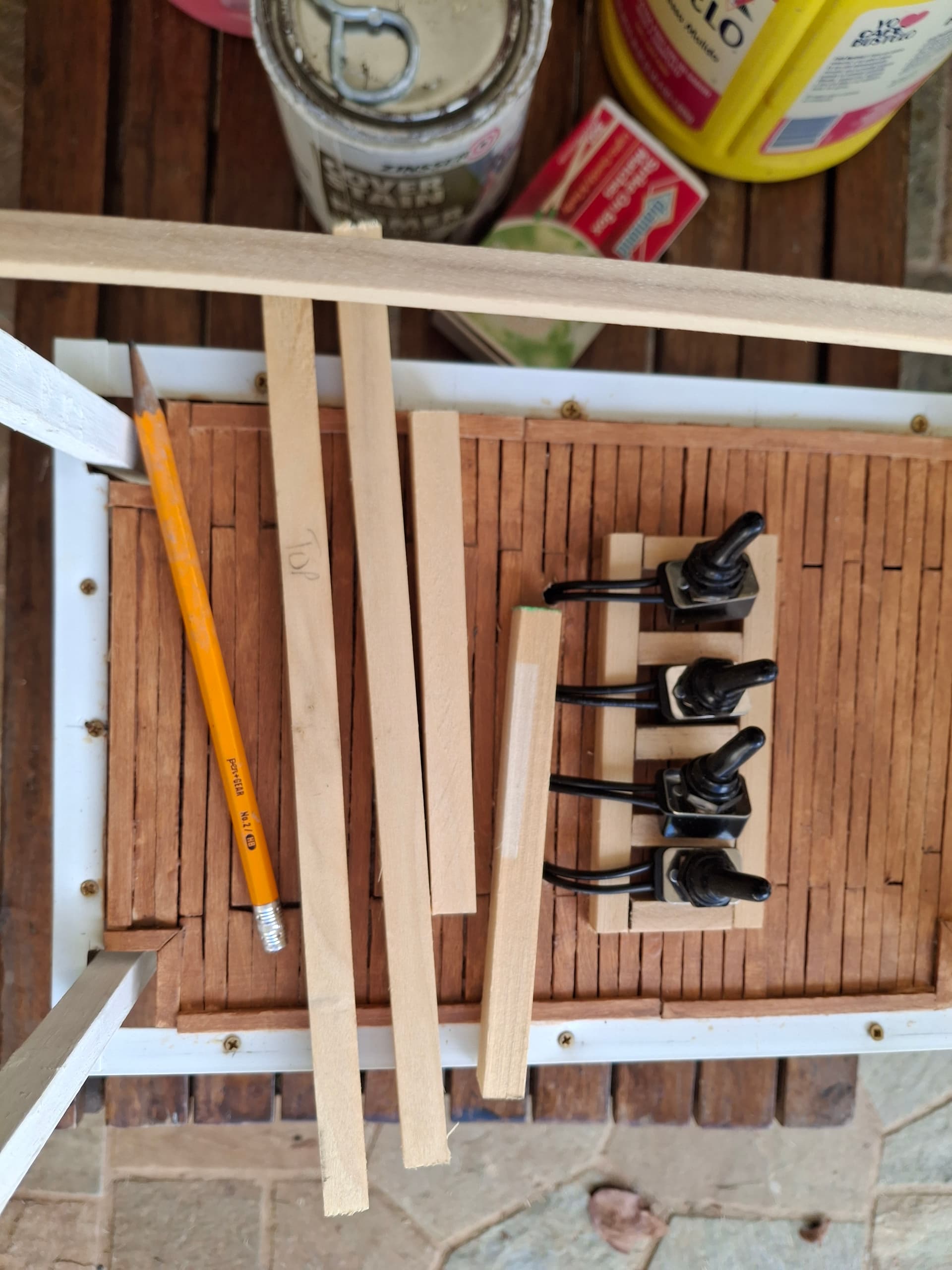

Only to find that my natural talent for woodwork left the gang with some trim work to do!

Oh, well. I’ve learned to err on the side of “leave a little extra and sand to size.” All is well, the glue is drying, and tomorrow I should be able to set the switches with double sided tape, tap holes in the roof, and wire them to the doo-hicky. If I can get that far, I am not far from being able to wire this back to the railroad, brining the mill’s loading dock and our coaling tower back into operation. As the new version of this will be removeable, it will allow me to work on this between operating sessions (operating = trains chasing their “cabeese”).

Getting there!

Eric

1 Like

I’m not throwing the switch you throw the switch. I’m not throwing the switch you throw the switch. I’m not throwing the switch you throw the switch. I’m not throwing the switch you throw the switch.

Ummm the switch isn’t even hooked up guys? It’s a trick I tell ya’ so if it’s not hooked up then you throw the switch!

I’m not throwing the switch you throw the switch. I’m not throwing the switch you throw the switch.

just for your information: it is 20 letters minimum, not 20 repetitions.

1 Like

Horse puckey… it has nothing to do with 20 letters or repetitions. It is purely a discussion between the characters!

Now quit jacking up the kids thread!
:rooster:

Update:

This project lurched forward over the last two weeks. The events below happened simultaneously but, to make it easier to describe, are broken into two key lines of effort: 1.) wiring, and 2.) the observation deck.

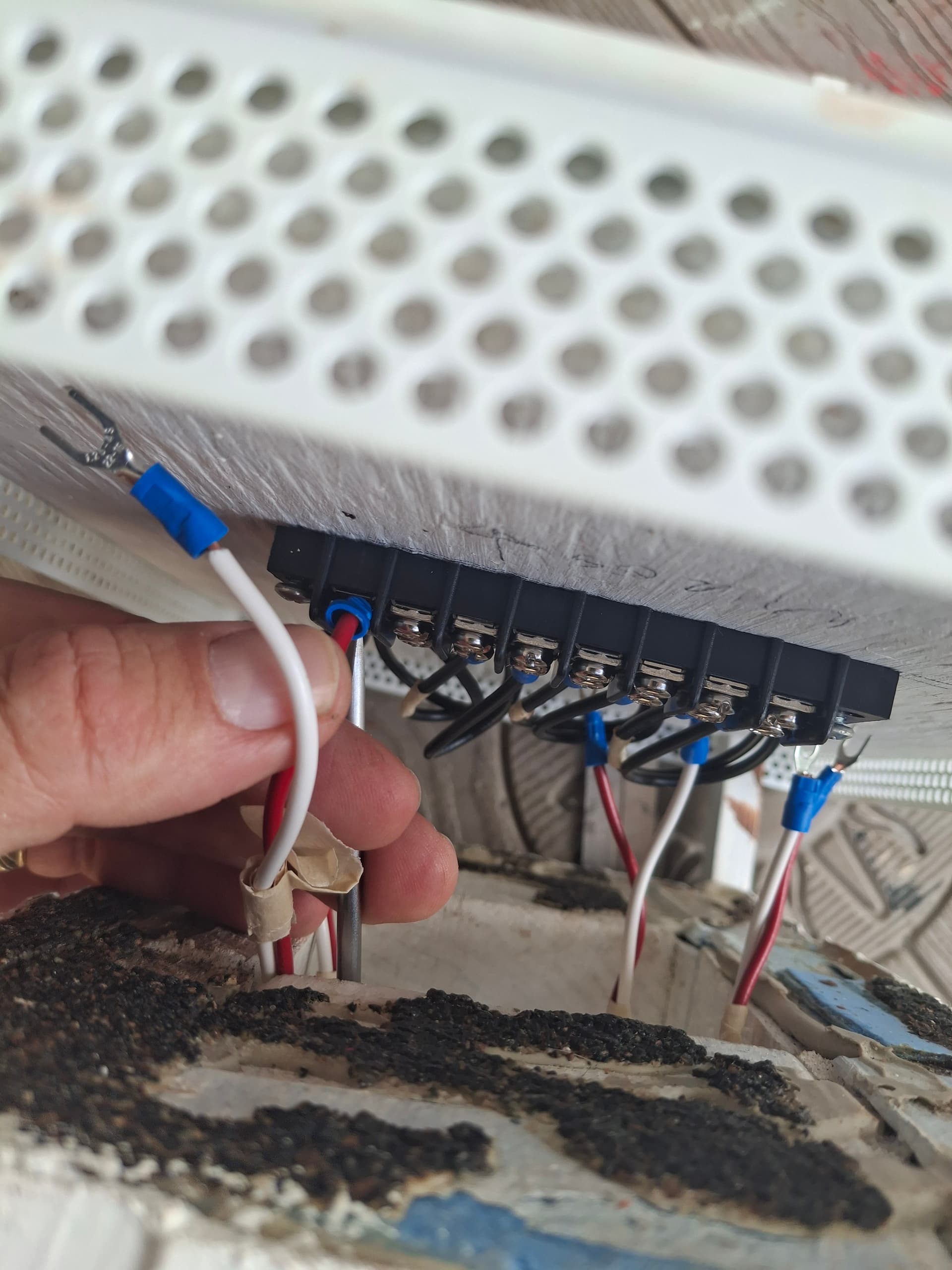

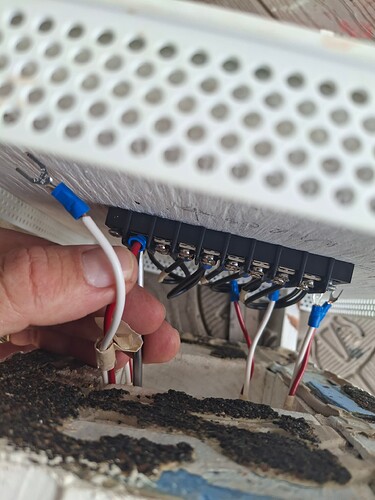

Key to Line of Effort #1 this was getting the cables in and wired to the wire-connector-thingy.

There is just enough room to get in there and do the connecting, but the wires are too close to the building core to close the roof!

At Kid-zilla’s suggestion, I cut up some “lumber,…”

…glued it to the core. The roof sits “level-ish,”
but the 1:24 guys figured a bit of shimming on the bottom when we affix this to its base should do the trick.

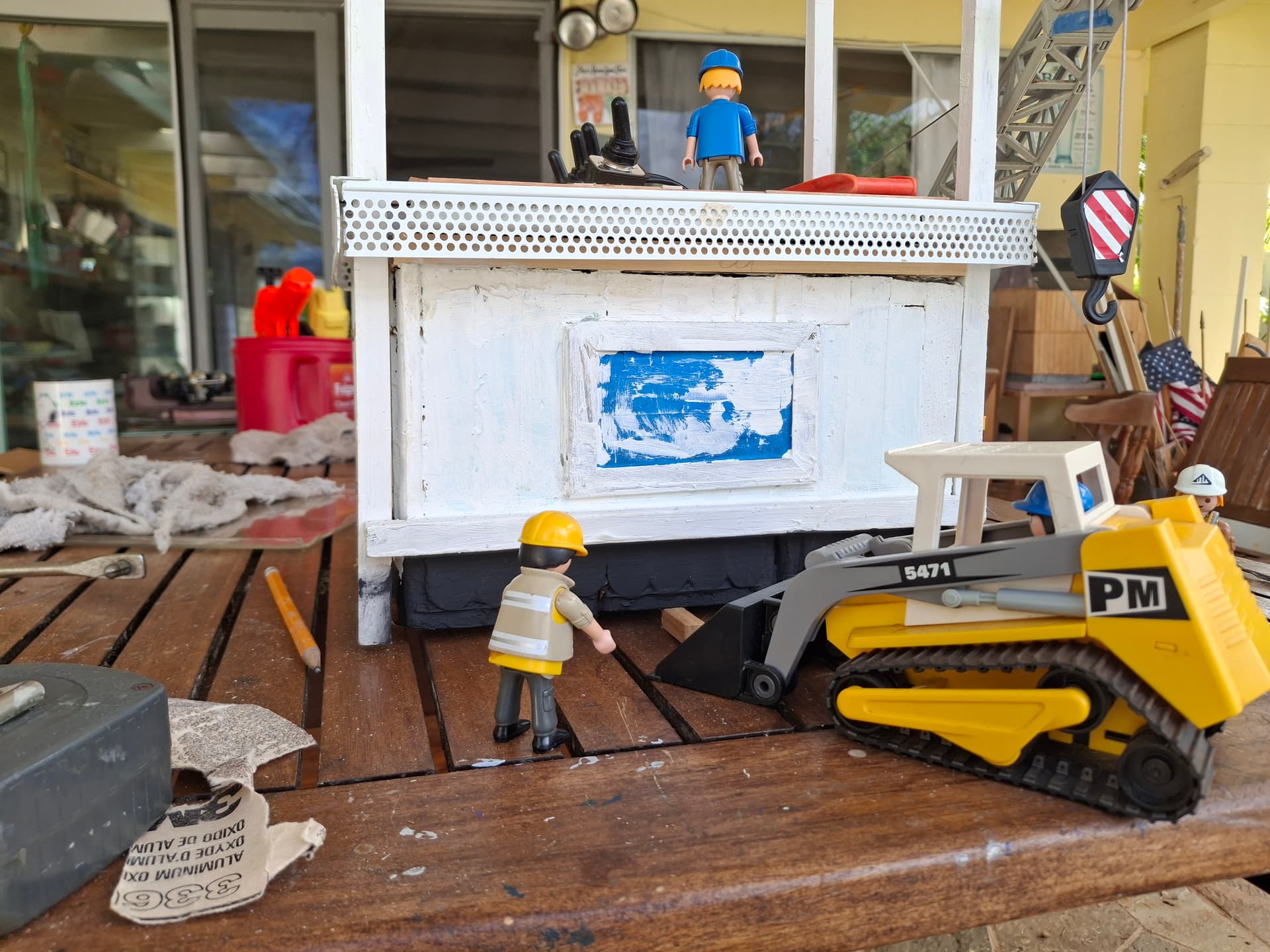

As long as it passes the all-important can-a-PLAYMOBIL-dude-stay-standing-upright test, it’ll work. Oh, the black paint is preparatory to the upcoming “rock” foundation, the original one made from expanding foam having long rotted away

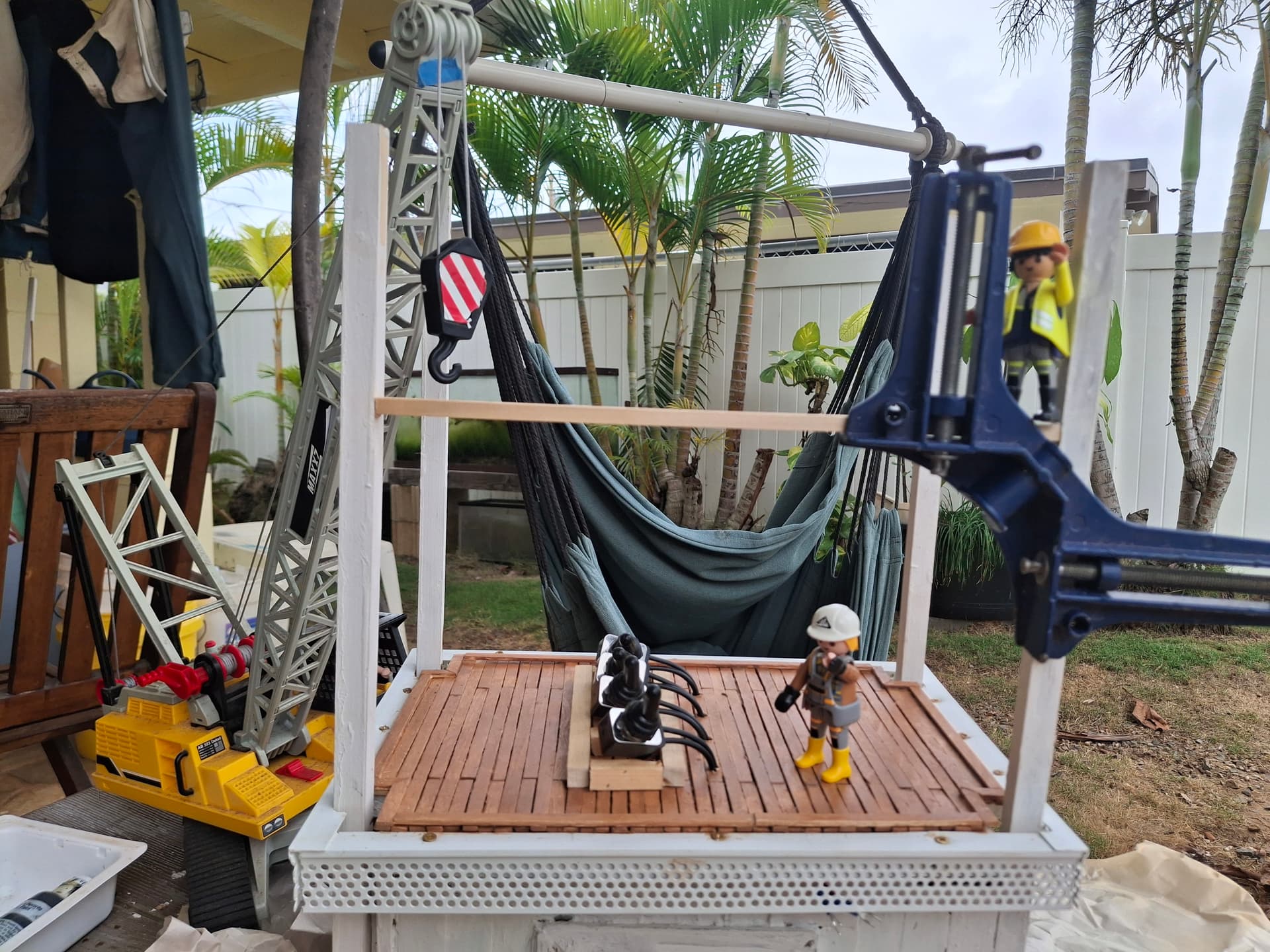

The observation deck began simply enough with some cutting, sanding, gluing, and clamping.

At some point, I remembered to get the wiring installed before preceding. I was, however, glad for this one cross-piece, as it allowed me to “prove” I could get at and fix any loose wires without deconstructing the tower. Yay!

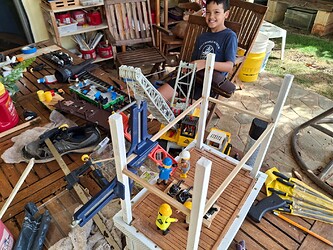

The lads and Kid-zilla joined me in slowly building the frame.

Sunday, the lanai went quiet with all cross-pieces in place.

Two observations:

  1. It is exactly two crafsticks long! Yay!
  2. It is in no way a parallelogram. Booo…

We will forge on.

Bracing, decking, paint, safety rails, canopy, and ladders to go! Should get some wires from the hardware store this weekend so that we can at least plug this in and restore some passing sidings to service as those other things go from imagination to creation.

Updates as Progress Merits,

Eric

Update:

Last week was spent trimming, gluing, and clamping the decking in place. By Saturday, I had time to mount the building to some Hardiebacker after leveling it with foam scraps while waiting for glue to dry on the deck. It came out level.

Moving on…

I though that the construction cement alone might not endure over time, so I did put some deck screws into the core through the base.

This still meets my criteria of removable, though I would have to chip through the glue. I decided that since the finished product will come inside between runs, durability might obviate the need for disassembly requiring repairs.

By the end of Sunday, it looked like this:

Tonight, I began glueing foam scraps around the base to replace the long-rotted “stone foundation.”

The plan, once the “stone” encompasses the base is to rough it up with a wire brush, then paint and drybrush as we’ve done before. Normally, we would cut fitted strips of foam and carve individual “stones” into the face, but I wanted to try and make use of all the irregular scraps we’ve collected.

I plan to get the wires laid this weekend, running them under the tracks and zip-tying them to the ties. This will, as mentioned, restore two passing sidings to service and enable us to run STAINZ and larger cars on our inner “plantation” loop. Currently, all locomotives and rolling stock must pass through the mill. The wires are also the last part of the project that needs a dedicated work session. Most of the rest I can probably do in 20-30 minute intervals as (if?) they present themselves over the course of the week.

Updates as Progress Merits!

Eric

This project is moving along nicely. The playmobile guys seem to be putting in a bit of overtime. Eric, how much time do you recon you and Kidzilla manage to spend on the railroad each week? I’m assuming the rest if the week is school, work and maybe sleep?

Update:

First, Bill ( @Hines ), thank you for your encouragement! Yes, the 1:24 crew earned their pay! Funny, I actually use them to slow me down. Posing them, in addition to helping me maintain our nominal scale, forces me to slow down and think about the project. Those little dudes have stopped me from making countless errors! Second, as far as time on projects, Kid-zilla and I probably spend six hours together puttering over the course of the week. He likes to build in parallel, but he is slowly starting to move onto the lanai on his own (if someone gives him a tablet or cell phone, I shall be most vociferously displeased…). Normally, I have to help him, but he does help me paint, glue, find tools, etc. We both help each other find dropped parts, and he has learned gravity works sideways in the modeling world! I do our blogging, almost exclusively here, to get help, show off, have fun, build community, remember how to do stuff, etc. Trains run most weekends, usually late afternoon through sundown, and we use setup time to address MOW and electrical issues. We both take great pleasure in flawless operations during dinner or during a garden party! As for inconveniences, yes, he has school, and I have a job. Bummer…We also have other hobbies, as diverse interests, in my opinion, keeps any one from becoming boring or stale. If Kid-zilla has an advantage over me, he has neither wife nor children of his own. These other folks in my life also demand and DESERVE my attention, and my puttering with Kid-zilla at the exclusion of others has gotten a few stern “Ha-RUMPH-s!” from CINCHOUSE!

This project has lumbered forward, all the same, with the Thanksgiving weekend offering a chance to work in fits and starts. One spasm of activity resulted in a pair of ladders. The 1:24 crew and a PLAYMOBIL ladder helped with the spacing:

The material is a kebab skewer, glued in place with TiteBond III, then lashed with a bit of twine. I lathered the lashing in more TiteBond III to reinforce the lot. The picture below shows the lashings without the glue.

The goal is to maintain some of the original structure’s “jungle theme” while avoiding poor choices of material. The next picture is the original roof lattice, built in the same manner, that survived 7 years outside and at least one falling coconut frond:

The other big effort was to finish the “stone” work. I ripped, jammed, and glued irregular bits of foam from our scrap bag around the base. Kid-zilla and I tried to texture it using flat matte, but found it harder to control, no quicker, and less visually appealing. The first picture shows the flat matte spray, and the second shows the same wall undergoing our traditional wire brush shaping.

![2

That behind us, we gave the base a heavy wash with black acrylics. We have found the easiest way to make this “stone” is to texture it, paint it a dark base color, then highlight it via drybrushing. This will need one more basecoat as some pink foam remains visible, but it is almost there. Here are a couple shots:

Oh, and, yes, it still fits in the Pu’uom’a’o yards!’

Various touch up, painting, wiring and some sort of roof - probably “canvas” - over the observation deck are still left! Getting there!

Eric

4 Likes

Eric;

At least your small workers look friendly; my guys look ready for a rumble.



Best, David Meashey

Update:

Somewhere over the last two weeks I found time to drybrush the “rocks:”

This looked a lot better, so, in the spirit of two steps forward and one step back, I dripped white primer on it this weekend between Christmas activities and squalls. I also discovered the glue bonds on my bracing were less than satisfactory. Sigh…I have a pin nailer, but I worry using that will just shatter the wood and create new problems. TiteBond III it will be.

As for wiring, I found some black lampchord in my bit bucket that intended to use to wire this thing in, but, alas, torrential rains and Christmas activities prevented that from happening. At least the parts are on hand!

I think that I mentioned earlier that this was supposed to have been an easy rebuild. Each correction and repair, however, has added its own challenges and exposed new areas for skill improvement. Sooner or later, this will get done.

Eric

I call that Everything is a Project or No good deed goes unpunished!

Did you mean ‘dead’ ? Or ‘deed’ ?

Either might wok, but the saying is deed. Fixed it.

Yeah, pretty much either works…dead or deed…especially where projects are concenred!

Eric

Update:

Well, Kid-zilla and I managed to wire in the plantation tracks prior to Christmas, effectively restoring the inner loop to full service. We split a long piece of lamp chord for the wiring, popped off the old brass connectors and replaced them with insulated ones, and crimped the lot together.

For a bit of extra security in terms of continuity, we actually took a tap from the “hot” rail from both sides of the mill. Soldering dissimilar sized wires together proved a challenged, but we did it. We finally plugged everything in…

…and gave it a test.

Video: Test #1
Video: Test #2

Yay, us!

Christmas arrived and with it the 'flu. Nonetheless, Kid-zilla and I managed to wire this thing in during ambulatory periods in the garden where we used the fresh air and light activity to purge our lungs of the ill humors! Those humors caught up with us just as we crimped the last wires into place yesterday, so we’ve yet to test it.

The wiring is unsightly, to say the least, but it is far from the primary viewing angle. I am not sure how to hide it without making it too difficult to unplug the building from transport. I’ll chew on that later…for now, I must ensure I avoid inhaling of miasmitic airs!

Meanwhile, in discussion with O.D., we agreed to change the original sky blue with lavender trim to hunter or “plantation” green with white trim. Practically, I don’t want to try to paint the plastic moulding I used to hide the plywood layers of the roof. Aesthetically, it will be a more typical Hawaii color scheme. She has agreed to paint the building. We’ll see…

Updates as progress merits!

Eric

Update:

O.D. grabbed the paints and had at it:

She has some touch up painting left, but here it is on the table and in the yards:

Nice save! When she is done, I’ll make some “rope” safety railings and affix the “bamboo” roof. Al…most…done…

Eric

2 Likes

Nice choice on the “hunter” green !

And Eric the finished project shows a good deal of improvement over your methods and abilities. Well done.
