Golding’s Salvage

Modeling
#14

How’s this project going Bob?

Since others are offering signage suggestion, mine is editing that CC sign to:

We accept Mastercard & Visa
In your dreams.

image1000×597 72.9 KB

#15

Rough mockup of where (I think) Golding’s Salvage will end up.

IMG_9242
IMG_92421920×1440 672 KB

1 Like
#16

Ahhh…I like it !

Will the gantry be operational for operations ?

#17

Well, it’ll be movable but not motorized. Gotta load all the scrap somehow!

#18

Does the scrap then head to port for barge loading?

#19

Tying in these two threads.

I’m continuing to cast more blocks, and also making some scrap bundles.

IMG_0127
IMG_01271920×1440 401 KB

#20

Casting continues. I need about eight more blocks to get 3 bays for sorting scrap.

IMG_0140
IMG_01401920×1440 303 KB

And still refining my scrap bundles. Need to add some color to them, they’re very “not painted or rusty”

IMG_0141
IMG_01411920×1440 460 KB

2 Likes
#21

Aluminum doesn’t rust :stuck_out_tongue_winking_eye:

#22

Some work on a scrap pile.

IMG_0299
IMG_02991920×1440 458 KB

2 Likes
#23

I let the rust activator set overnight. Looks pretty good; there are a few areas that need touching up on the lower edges, but overall I’m pleased with how this turned out.

IMG_0303
IMG_03031920×1440 480 KB

3 Likes
#24

Some trimming and various paint fixes and this scrap pile is done.

IMG_0305
IMG_03051920×1440 490 KB

1 Like
#25

What an amazing work of art!

A fine and highly detailed disgorgement of industrial scrap and waste, with a disturbingly uber-realistic flow to it.

I think it belongs in the East Wing of the National Gallery of Art on the Washington Mall. Everyone would be asking, “What is it saying about us?”

Seriously, I love it! Bravo!! Bellissimo!!

How did you make it??

#26

You need to sprinkle some up onto the block and add a grimy wash to the top of the blocks

#27

1/4 pvc board base, bent to shape using a heat gun. Cover with silicone adhesive and aluminum shavings. The attach various other pieces of scrap, rod, sheet, etc.

#28

A little searching in the web and an hour in CAD gives me a reasonable scrap handling magnet. Need to scale it up maybe 50%.

IMG_0307
IMG_03071920×1440 318 KB

IMG_0308
IMG_03081920×1440 431 KB

#29

Looks great. But if you’re going to string it up, I’d suggest holes drilled where your lifting loops are, and using brass cotter or loop-headed split pins to take that load.

#30

Yea, I think I’ll end up slotting the top and making the lifting lugs out of brass. I’m going for this look.

and, fortunately, they have a drawing so I’ve been working off that. I guess the protected gizmo on the top is the electronics box.

image441×601 52.9 KB

#31

Some real chain like that will look outstanding.

1 Like
#32

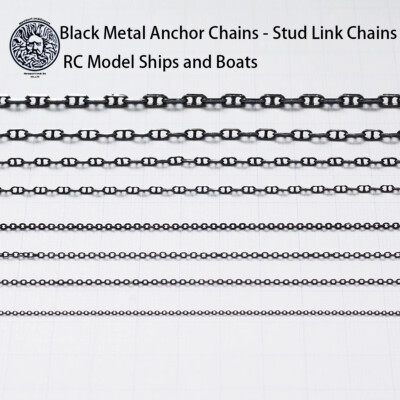

On EBay

Or AliExpress
https://www.aliexpress.us/item/3256806415594996.html?src=google&pdp_npi=4%40dis!USD!1.69!1.61!!!!!%40!12000037788549186!ppc!!!&src=google&albch=shopping&acnt=708-803-3821&isdl=y&slnk=&plac=&mtctp=&albbt=Google_7_shopping&aff_platform=google&aff_short_key=UneMJZVf&gclsrc=aw.ds&albagn=888888&ds_e_adid=&ds_e_matchtype=&ds_e_device=c&ds_e_network=x&ds_e_product_group_id=&ds_e_product_id=en3256806415594996&ds_e_product_merchant_id=107793176&ds_e_product_country=US&ds_e_product_language=en&ds_e_product_channel=online&ds_e_product_store_id=&ds_url_v=2&albcp=19678427463&albag=&isSmbAutoCall=false&needSmbHouyi=false&gad_source=1&gclid=Cj0KCQiAhvK8BhDfARIsABsPy4i-S7Ip3bX4FFDlSMSWJGVdFTCdcr38BOUWEbI41SB4OumOHj5CZf8aApFEEALw_wcB&gatewayAdapt=glo2usa

2 Likes
#33

With FFF printing it is possible to print some negative space and hide a magnet in the print. Can that be done with resin?

In any event Bob, are you considering placing a rare earth magnet on your electromagnet? It might allow you to precariously attach bits to dangle without glue…
