Surry Parker log loader and vicinity

Modeling
#1

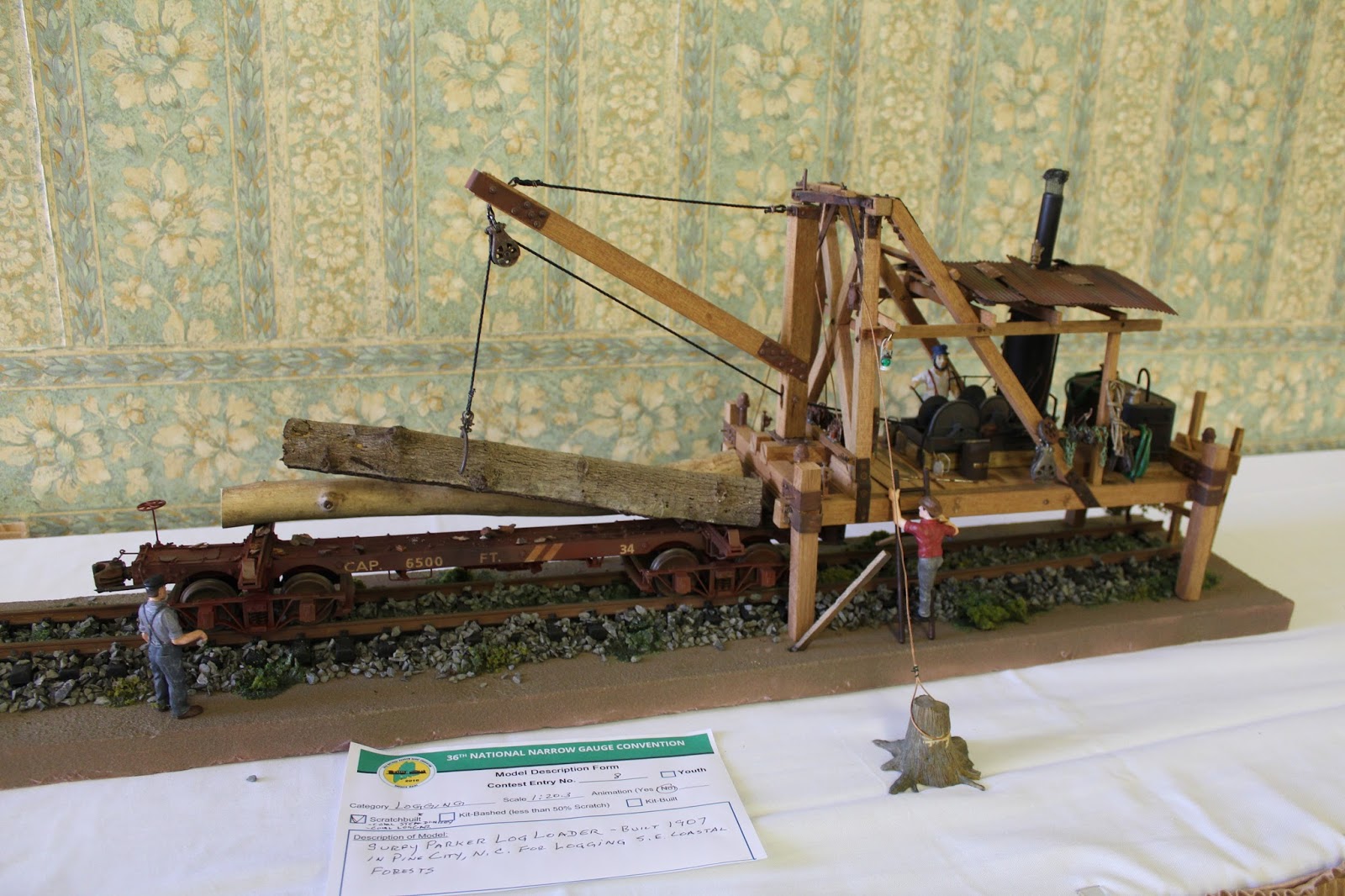

On the Durango & Jasper garden railroad [link] there’s a spot to load logs onto buggies for transport to the (not yet built) sawmill). Originally, the plan was to put a spar tree there, but then I discovered the Surry Parker log loader. Instant infatuation. Here are a couple of inspiration photos of models:

This is your standard steam driven crane with the difference being that it is built over the top of the tracks and empties run underneath the crane. I believe the deck, boiler, boom, etc. were transported to the site and then raised up on pilings to the right height.

Of course, I have nothing yet. I’m started on my boiler, following the great work of Devon [link] and Rick [link] in their recent Mik builds. Not having a lathe, I needed to do something different to create the tapered top to the boiler so I am trying putty (using milliput epoxy putty recommended by boomer). We’ll see how this goes.

Here’s where I am so far:

Waiting for the putty to dry (tapping my toes impatiently) so I can sand it down.

Cheers!

[edited to remove a stray close paren]

#2

Jim Rowson said:

On the Durango & Jasper garden railroad [link] there’s a spot to load logs onto buggies for transport to the (not yet built) sawmill). Originally, the plan was to put a spar tree there, but then I discovered the Surry Parker log loader. Instant infatuation. Here are a couple of inspiration photos of models:

This is your standard steam driven crane with the difference being that it is built over the top of the tracks and empties run underneath the crane. I believe the deck, boiler, boom, etc. were transported to the site and then raised up on pilings to the right height.

Of course, I have nothing yet. I’m started on my boiler, following the great work of Devon [link] and Rick [link] in their recent Mik builds. Not having a lathe, I needed to do something different to create the tapered top to the boiler so I am trying putty (using milliput epoxy putty recommended by boomer). We’ll see how this goes.

Here’s where I am so far:

Waiting for the putty to dry (tapping my toes impatiently) so I can sand it down.

Cheers!

[edited to remove a stray close paren]
