Procor 3000 cf Sodium Chlorate hopper - 3d printable

Modeling Motive Power
#1

Procor built more than 1,300 aluminum covered hoppers for hauling sodium chlorate dry crystals. Over 95% are used in paper manufacturing (bleaching agent). The remainder are mostly sent to beverage facilities for sanitizing equipment. Both industries I plan to add to my RR.

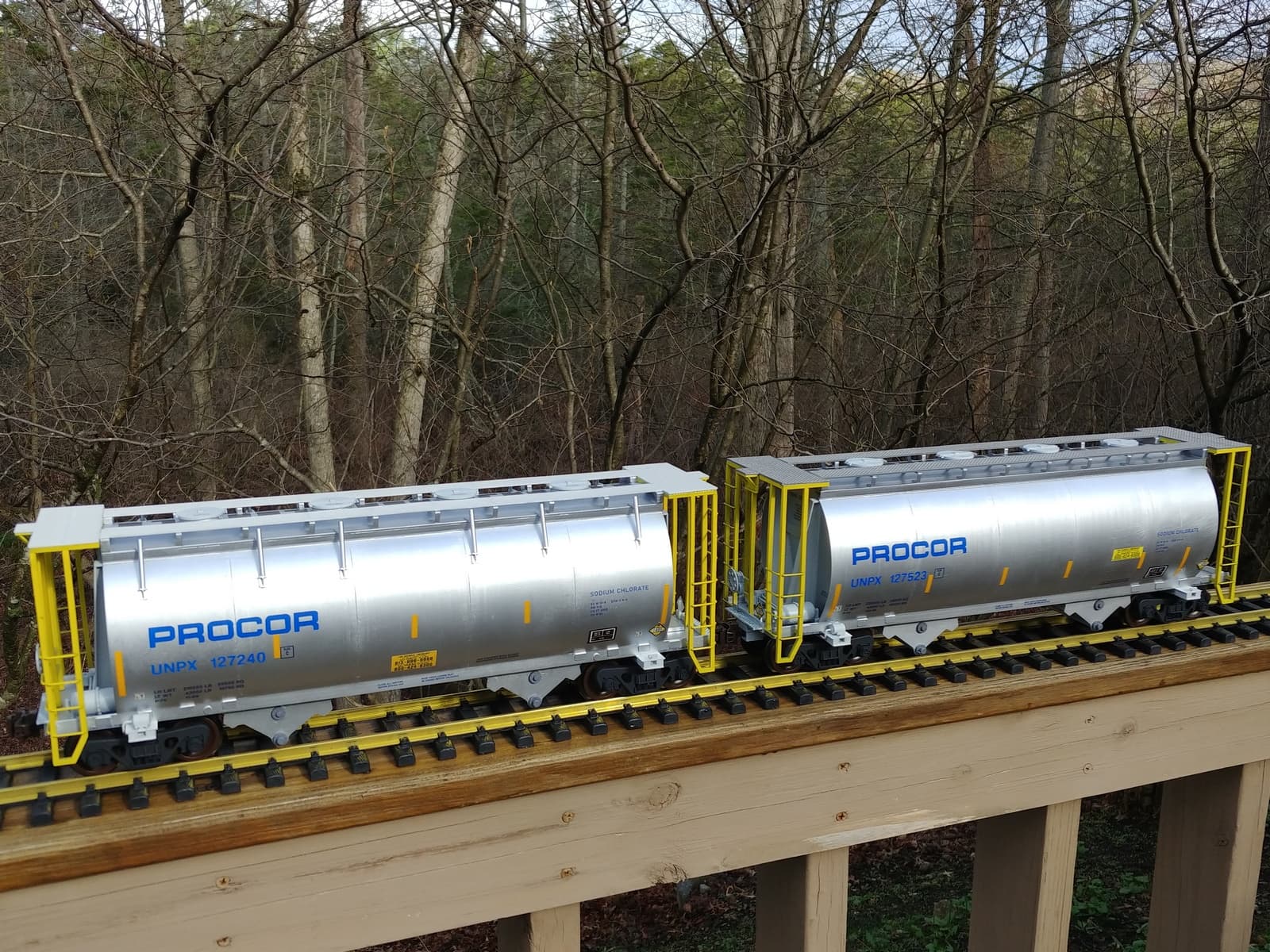

I’ve built 2 versions, One with retractible safety rails and one without. The files are shared on Printables. https://www.printables.com/model/1626905-procor-3000cf-sodium-chlorate-hopper-for-your-gard

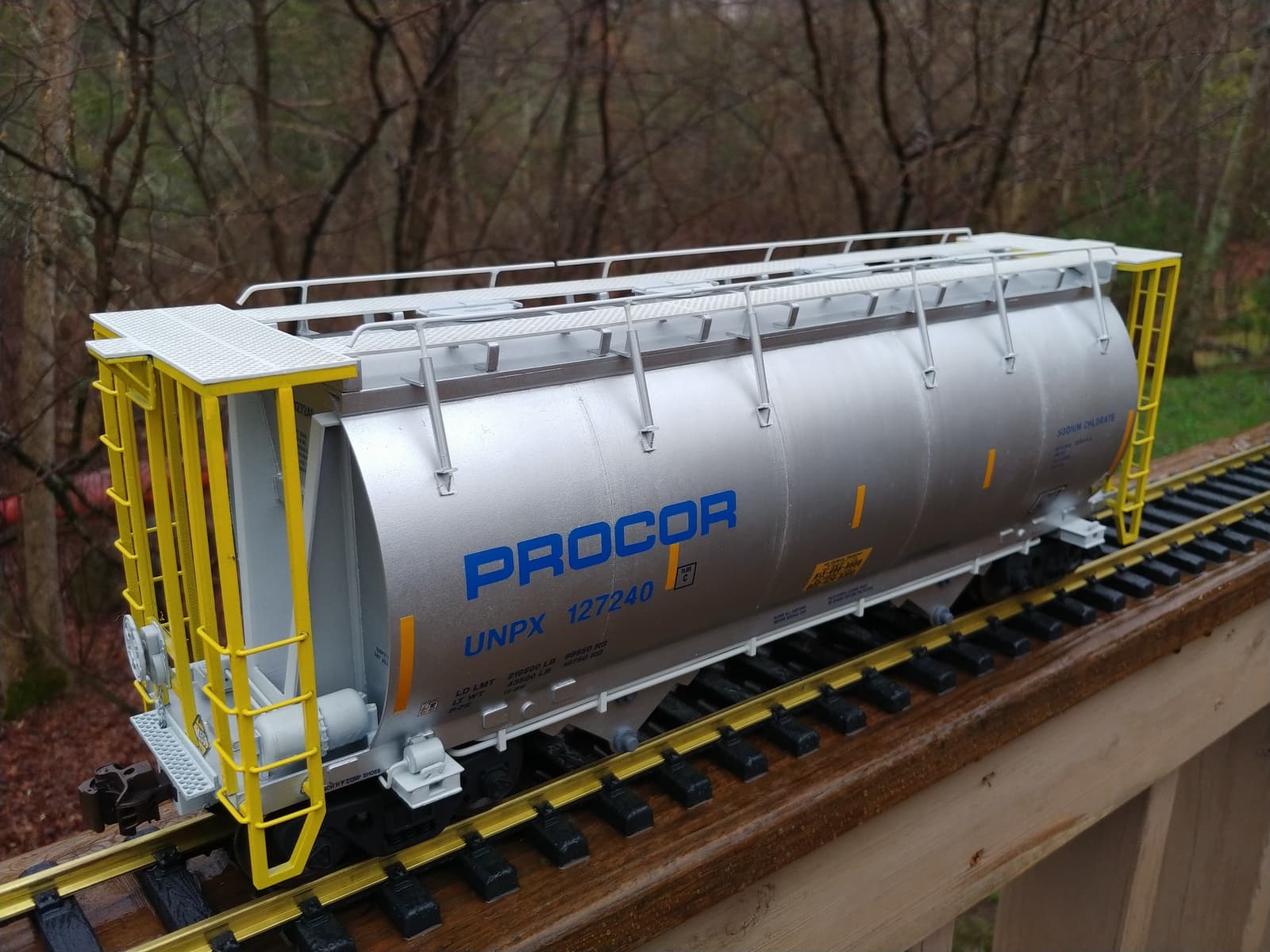

Procor_3000_01
Procor_3000_011600×1200 174 KB

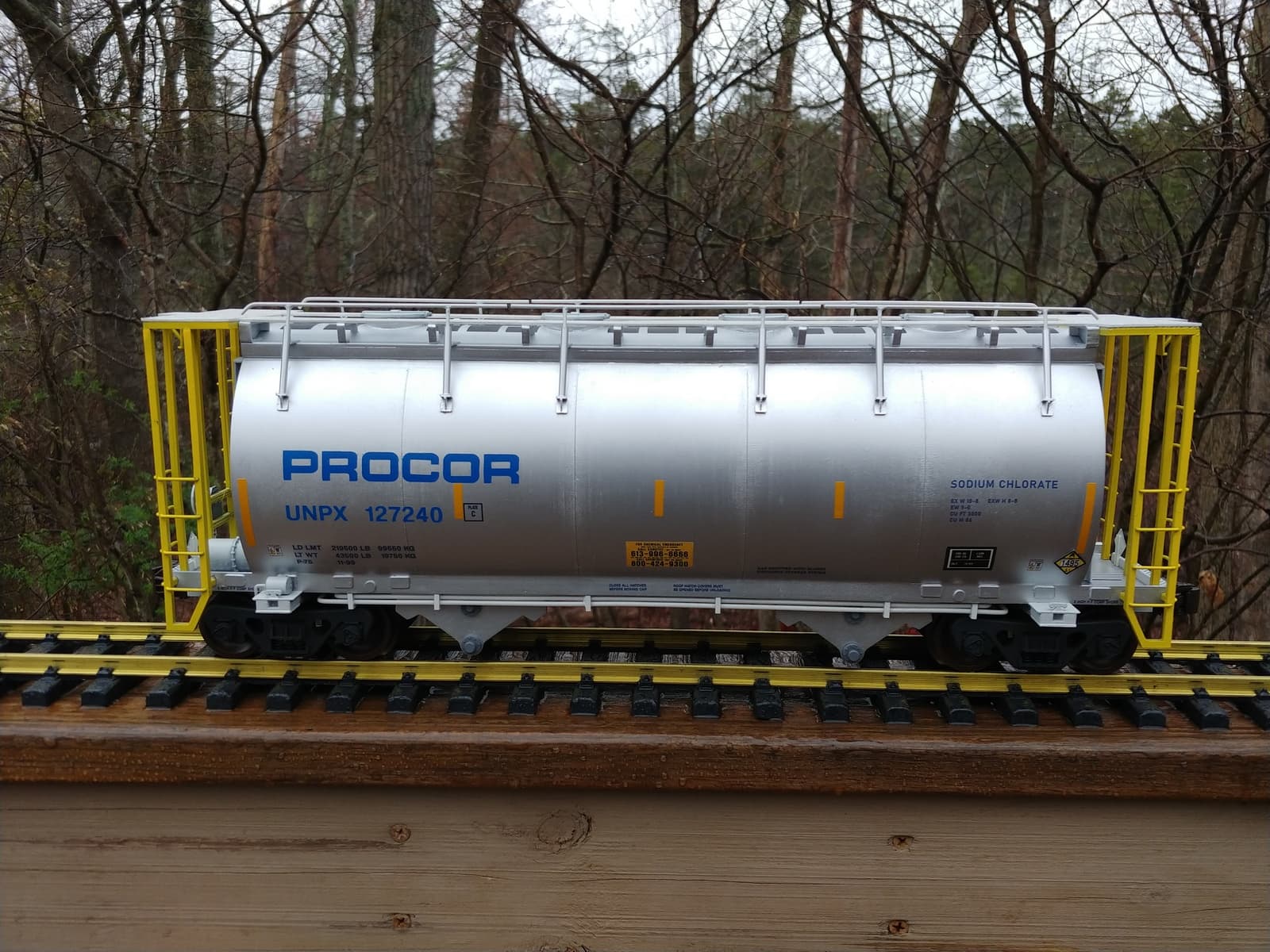

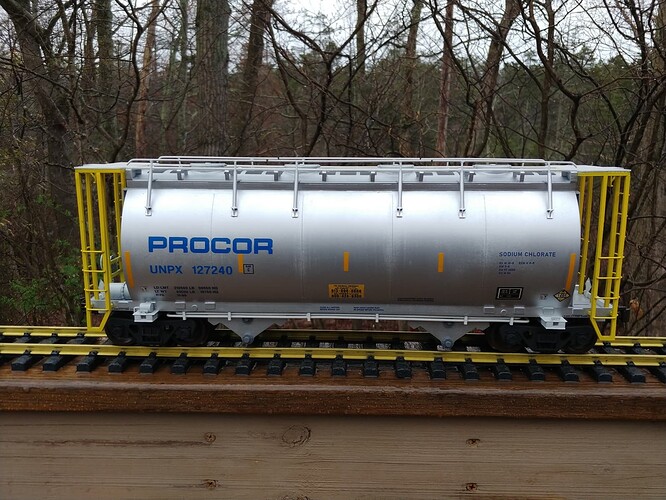

Procor_3000_02
Procor_3000_021600×1200 240 KB

Decal sheets in PDF format are provided as well
Procor_3000_03
Procor_3000_031600×1200 137 KB

Here is the Cricut design project file for the Anti skid patches. https://design.cricut.com/landing/project-detail/69c6c26bf52b03855e54d913
Procor_3000_04
Procor_3000_041200×1600 161 KB

Procor_3000_05
Procor_3000_051200×1600 161 KB

Procor_3000_06
Procor_3000_061600×1200 151 KB

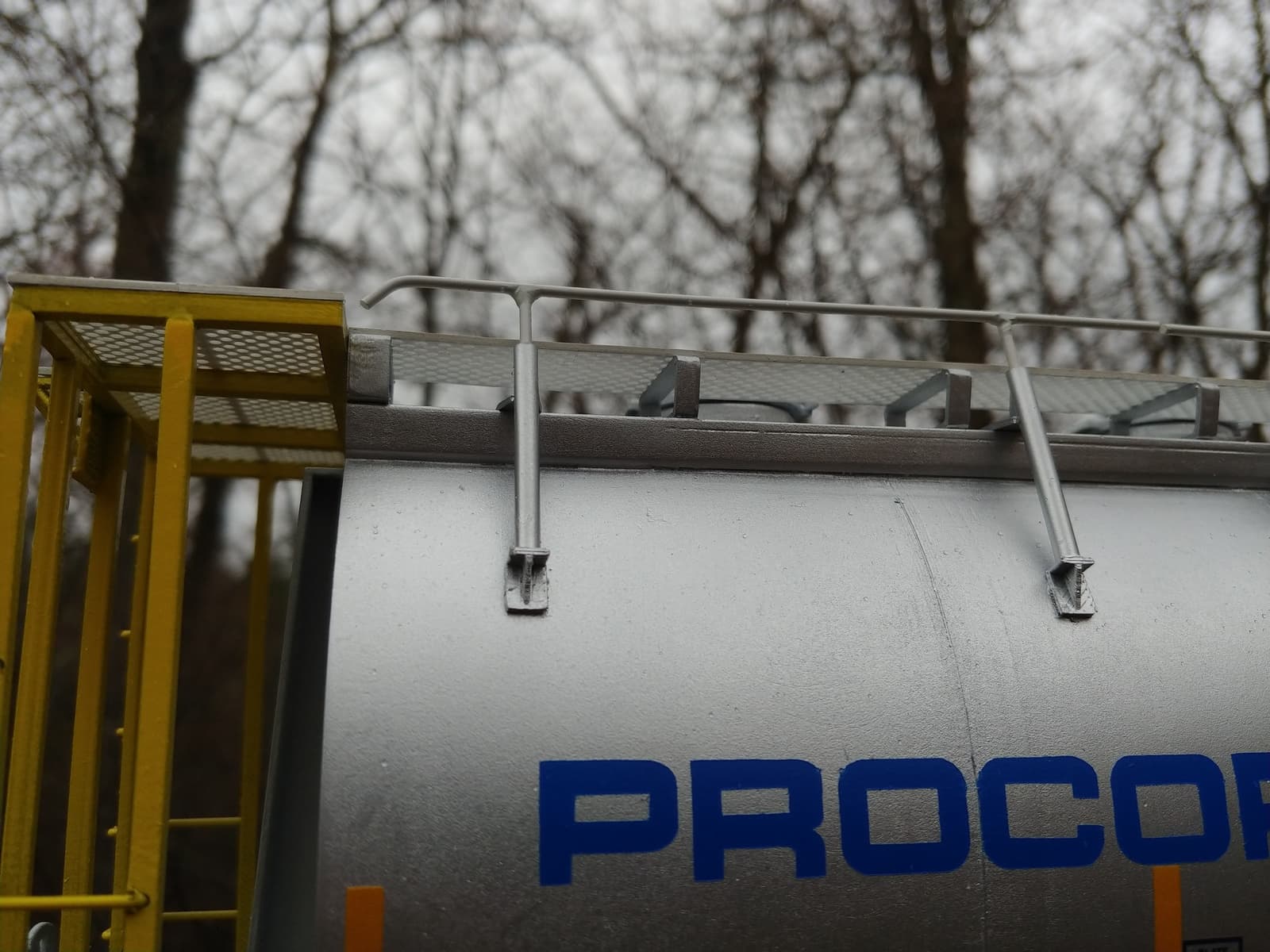

I fashioned the safety rail sections from brass rod.
2026-04-19-13-45-17-708
2026-04-19-13-45-17-7081200×1600 502 KB

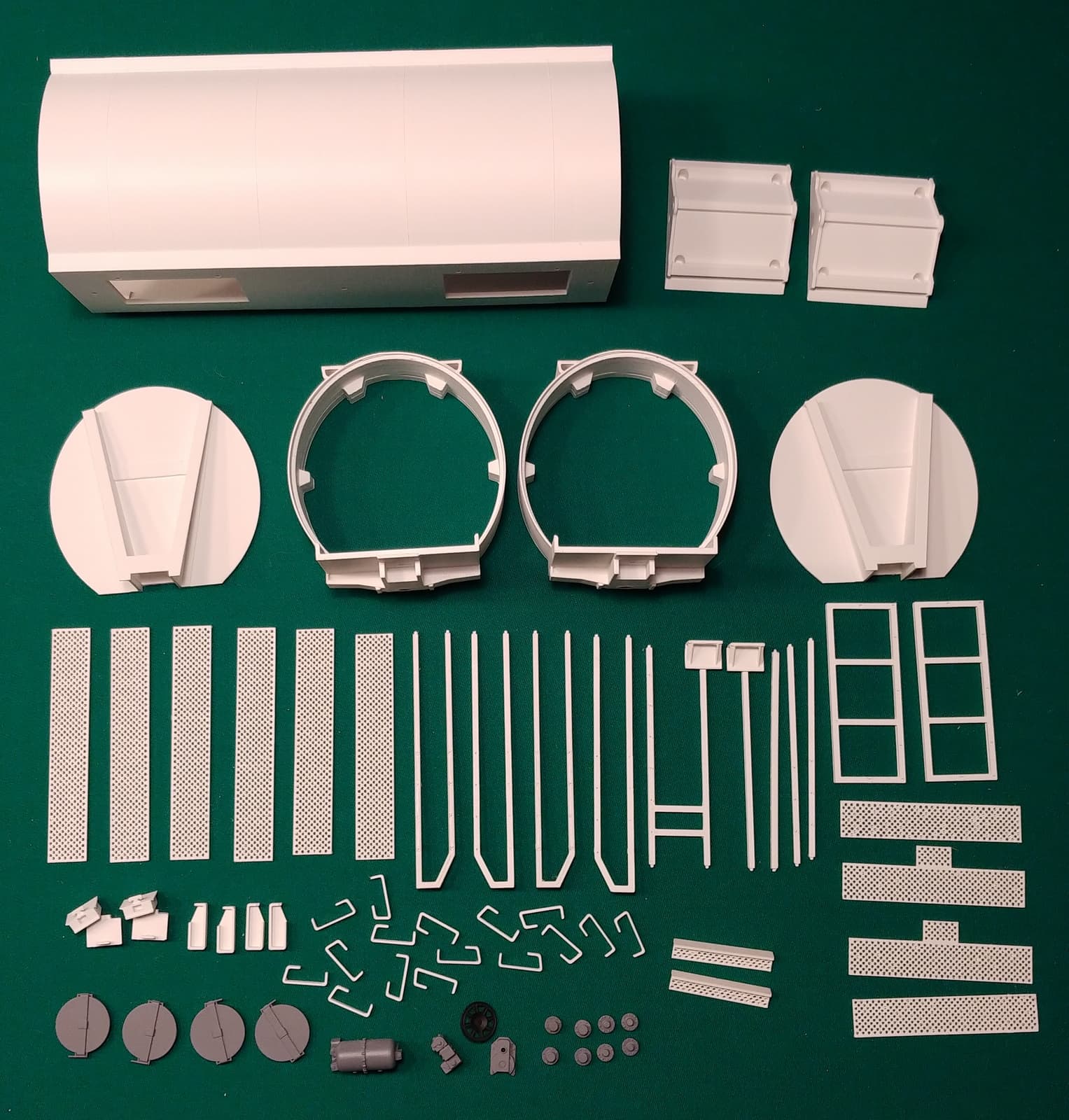

All parts printed in Polymaker ASA except the detail bits at the bottom which are Siraya-Tech tough grey resin.
2026-03-15-15-56-04-951
2026-03-15-15-56-04-9511527×1600 217 KB

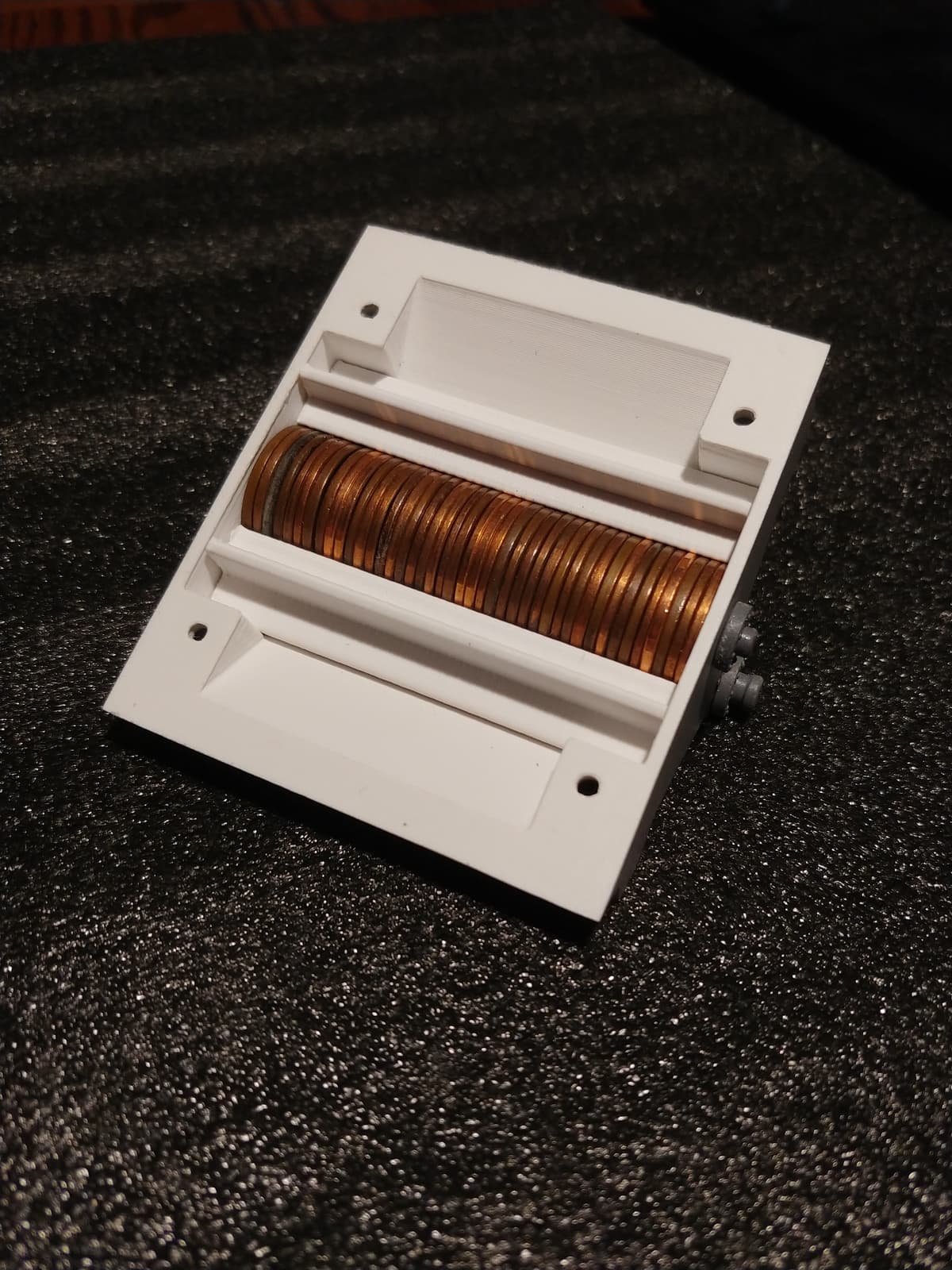

For added weight, I made inserts for the hopper outlets to hold a stack of pennies.
2026-04-14-14-11-37-216
2026-04-14-14-11-37-2161200×1600 220 KB

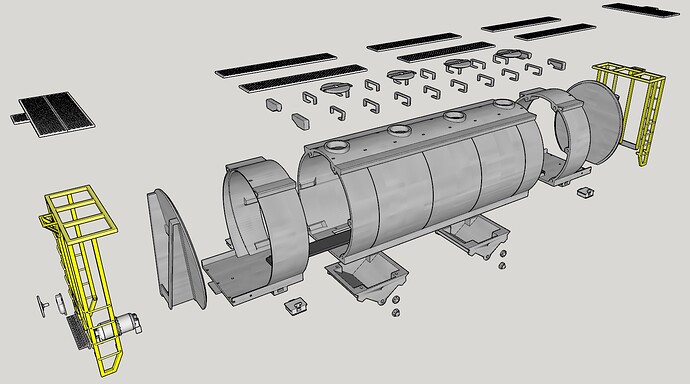

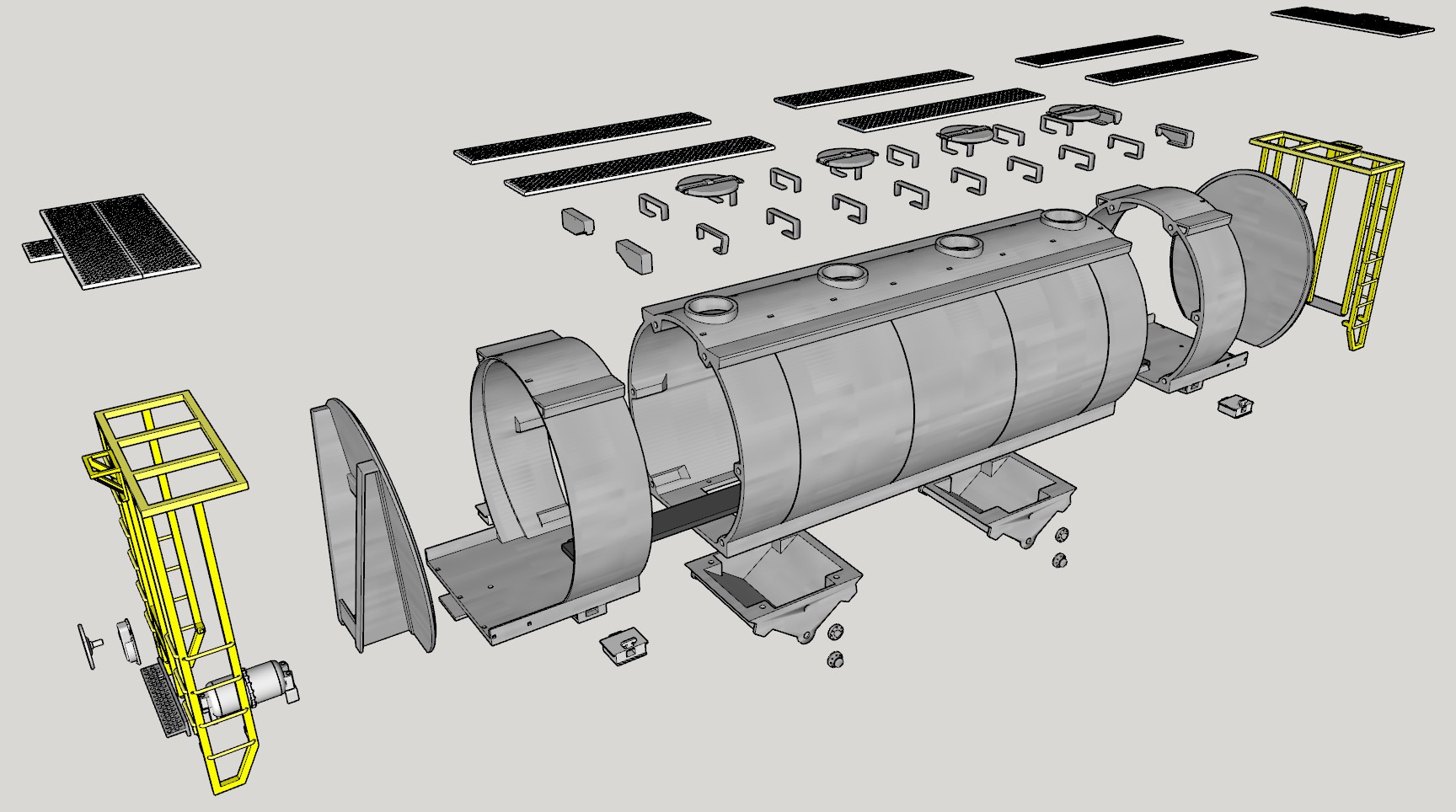

Procor3000_Exploded_1
Procor3000_Exploded_11728×964 237 KB

2 Likes
#2

Looks great! I love all the details, end platforms.

Only 1298 to go.

#3

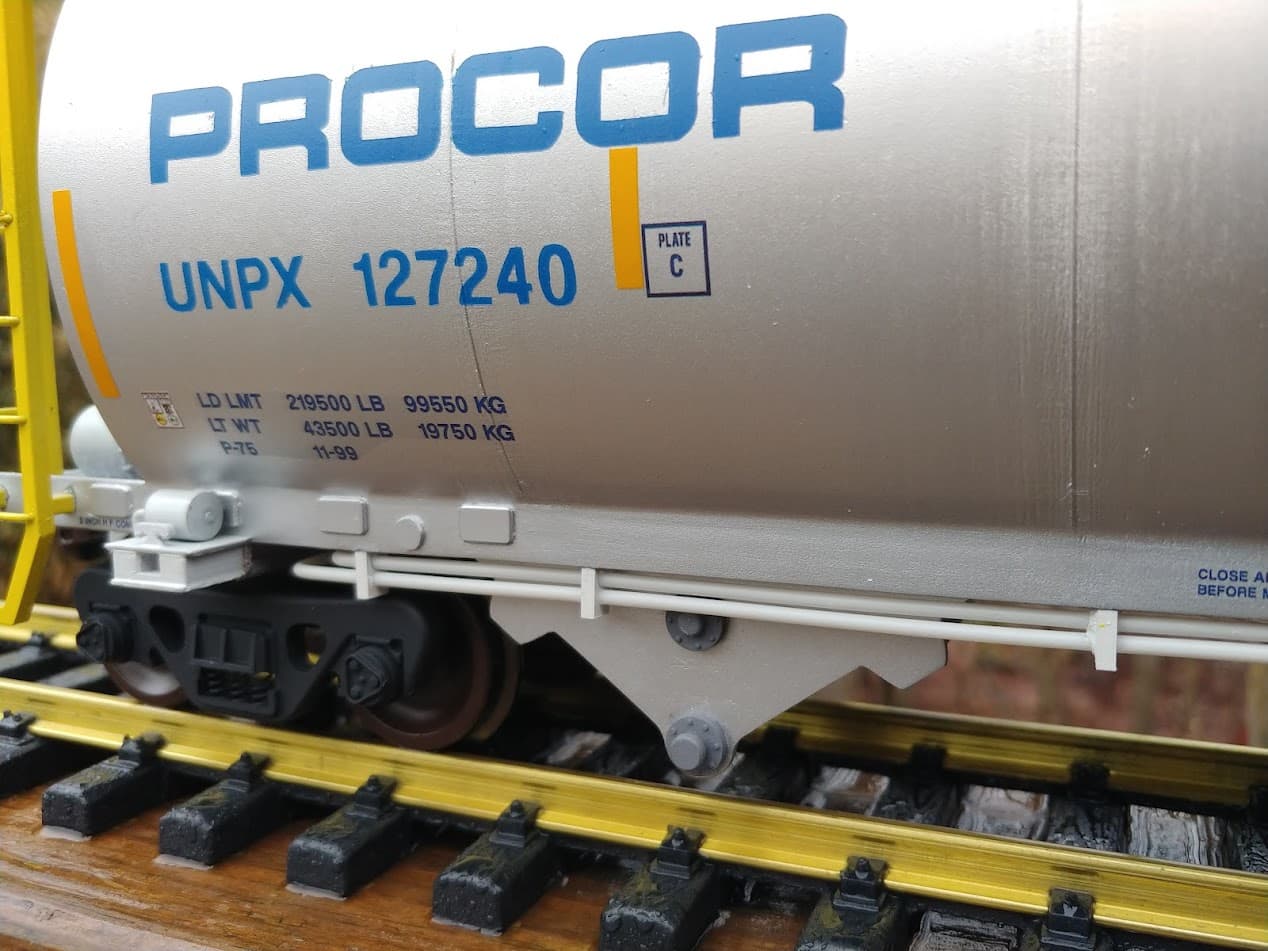

Thanks! A few details I’ve added to mine are not included in the print version. These “patches” on the sill are styrene sheet.

image1268×951 104 KB

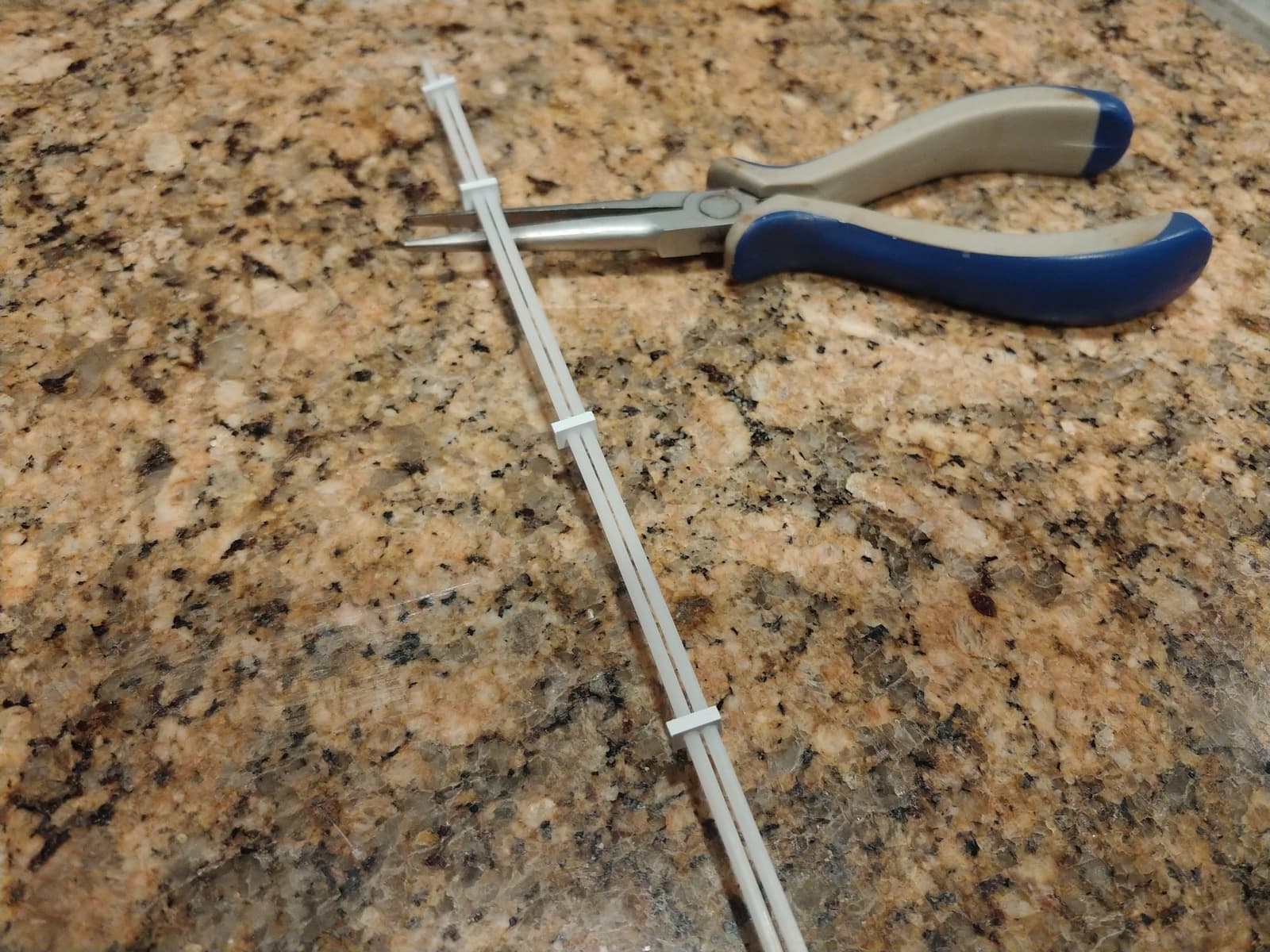

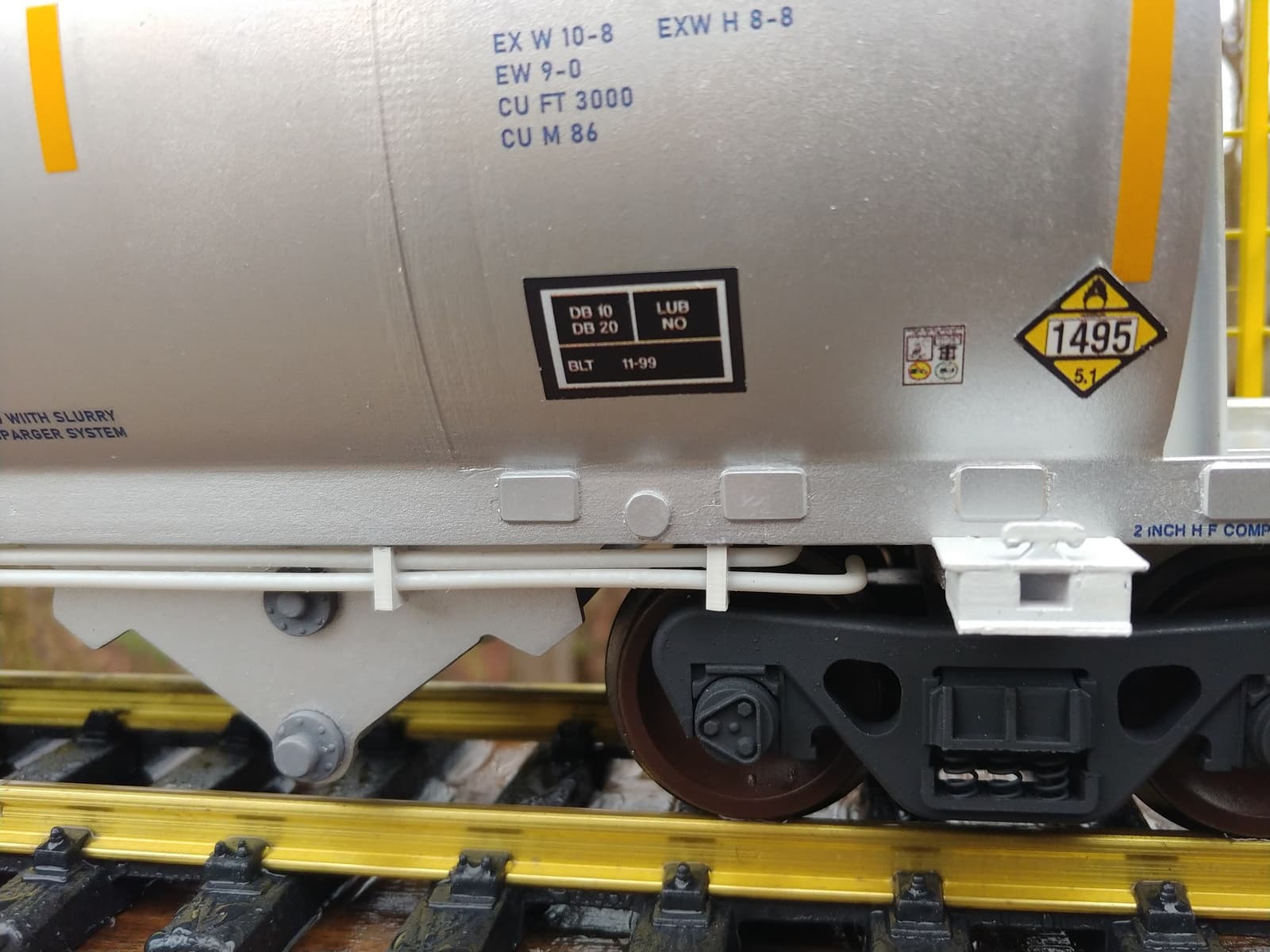

and the brake lines are 2mm styrene rods attached with brackets made by drilling a couple holes in styrene.
2026-04-18-13-51-04-457
2026-04-18-13-51-04-4571600×1200 241 KB

Not “Super detailed” but I felt they were needed. :slightly_smiling_face:

#4

2026-04-17-16-43-59-460
2026-04-17-16-43-59-4601600×1200 325 KB

1 Like
#5

Absolutely beautiful !! And your willingness to share the print and decal files is just awesome. Great work!

#6

Wow Dan, those look amazing!
What a great idea using a roll of pennies for weight.

Do you use your mini torch to solder the railings?

#7

Another gorgeous research, design and modeling effort, Dan! So many excellent details, and the decals are, as always, wonderful

I too am impressed with the pennies for weight. Easily adjustable, uniform shape (unlike many fishing weights), and they only cost, well, pennies.

#8

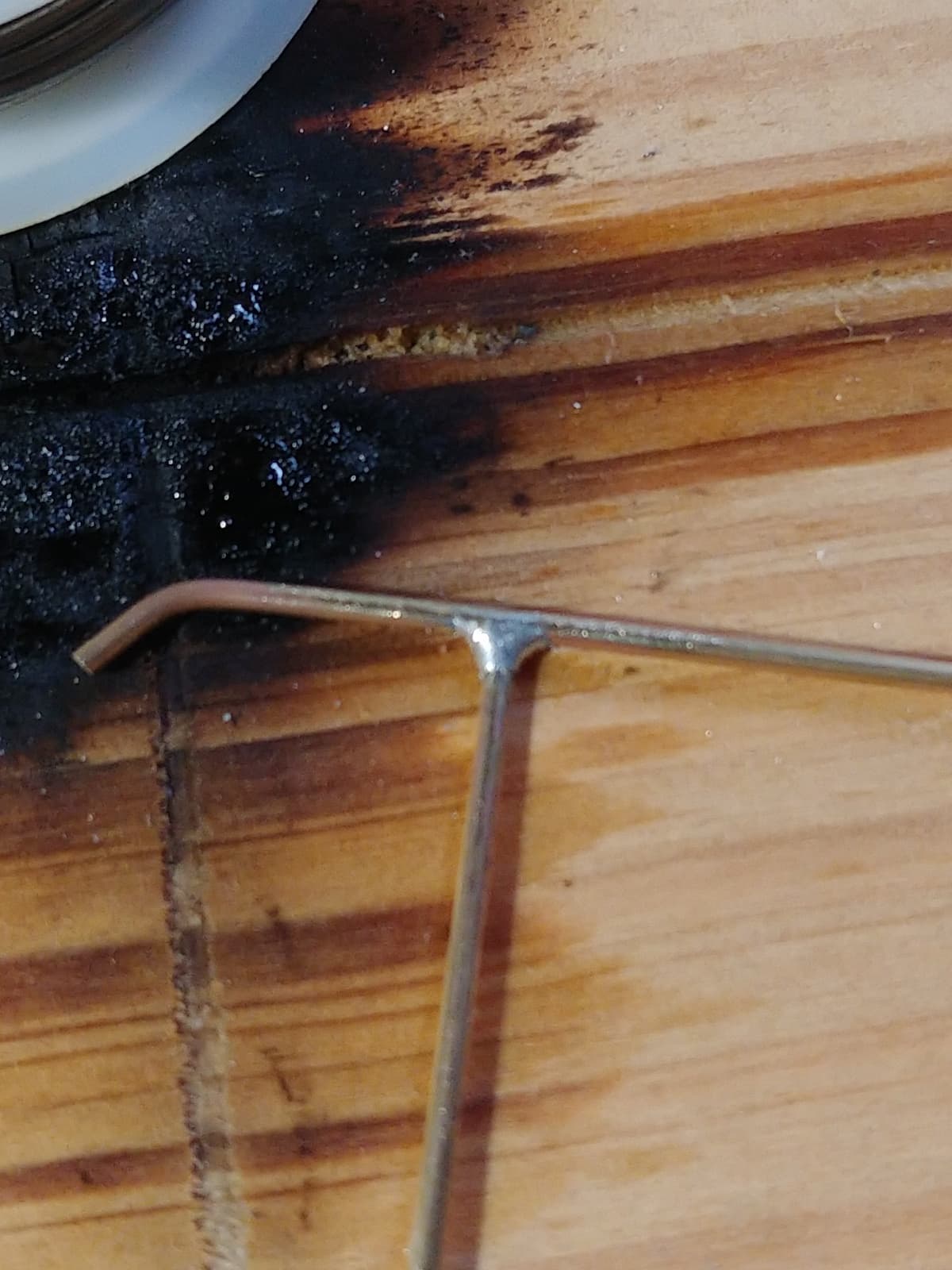

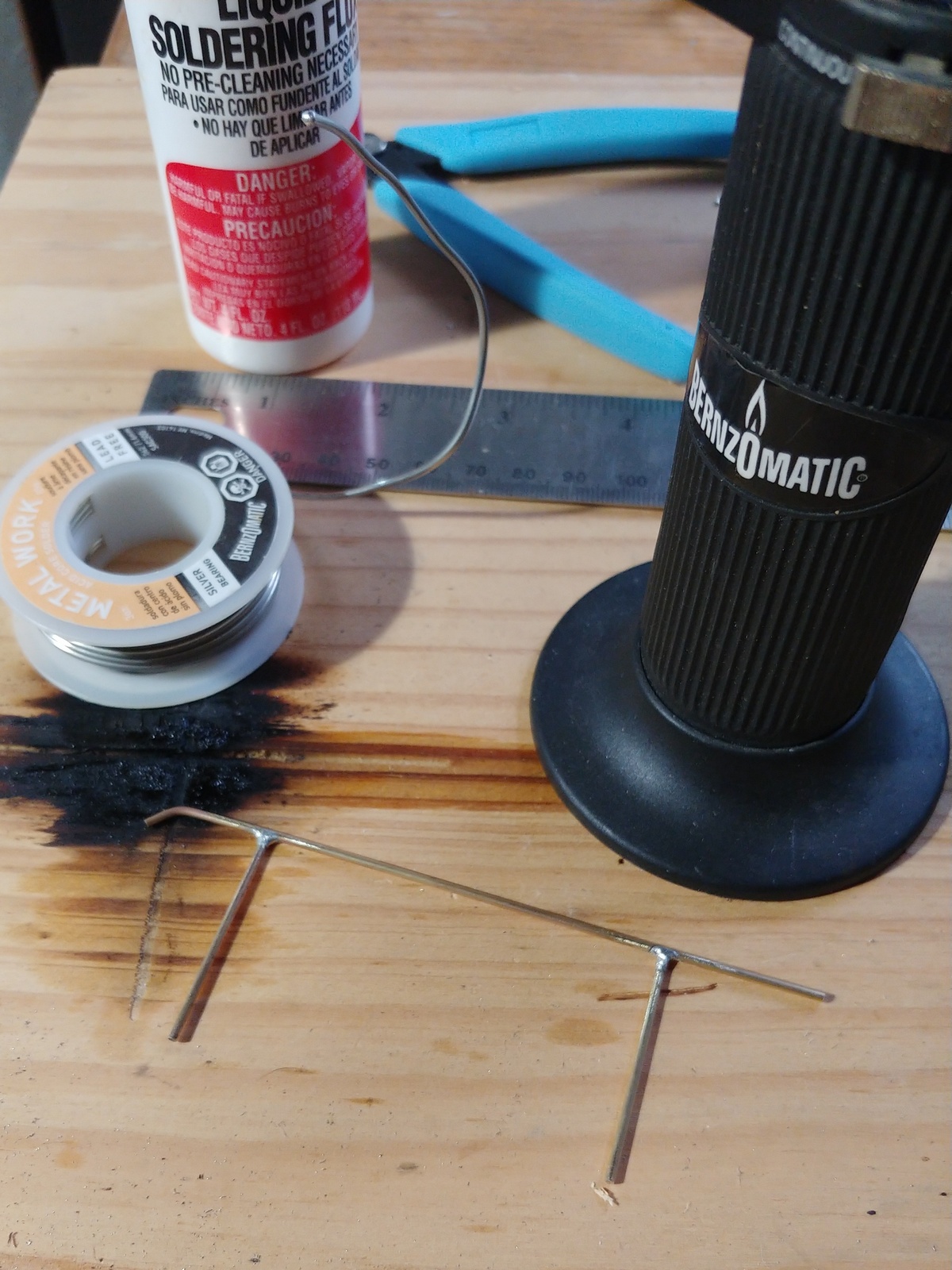

Thanks! Yes, I was going to use a soldering iron but the little torch works so much better! I cut a shallow X channel in a scrap board then:

  1. Placed and taped the brass pieces in place.
  2. Added a couple drops of liquid flux to the joint.
  3. snipped a tiny bit of silver solder and placed atop the joint.
  4. lit the torch and slowly brought it towards the joint.
    Worked like a charm. Little to no clean up. (filing).
    2026-04-19-13-45-45-530
    2026-04-19-13-45-45-5301200×1600 129 KB
#9

That is clever and the results look great. I might have to try that the next time I have railings to make.
