I READ IN MODEL RAILROADER MAGAZINE ABOUT THE PLANS FOR THEIR HAND CAR SHED SO I FIGURED I WOULD BUILD ONE OF MY OWN …AND HERES WHAT I CAME UP WITH…

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3205_zps17187cdc.jpg?t=1393298244

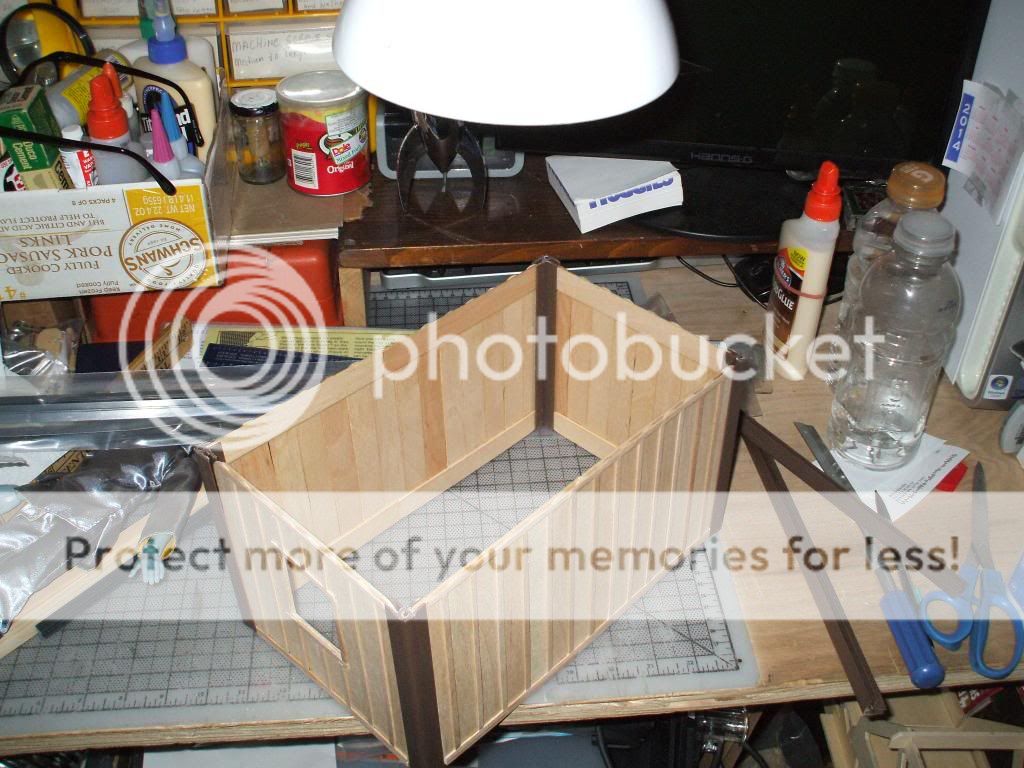

this is the back side and side window view …i made this by using craft sticks using the side frames as a guild in glueing up the boards and then adding coffee stirrers as battens for the boards with out cutting them… this is before i cut out the front doors for the track & hand car…

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3203_zps378c3f51.jpg

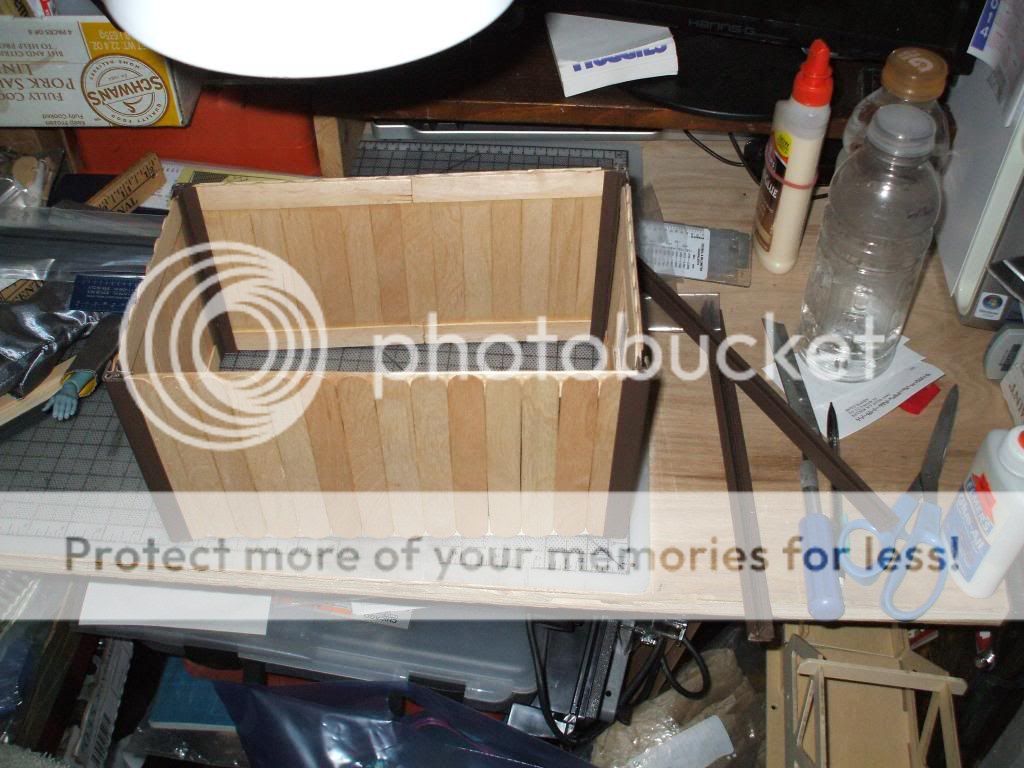

here’s the front view before i cut out the doors

http://i564.photobucket.com/albums/ss87/sewjoe49/RRrailcarshedplansin1-64scale_zps7959efe5.jpg?t=1393297280

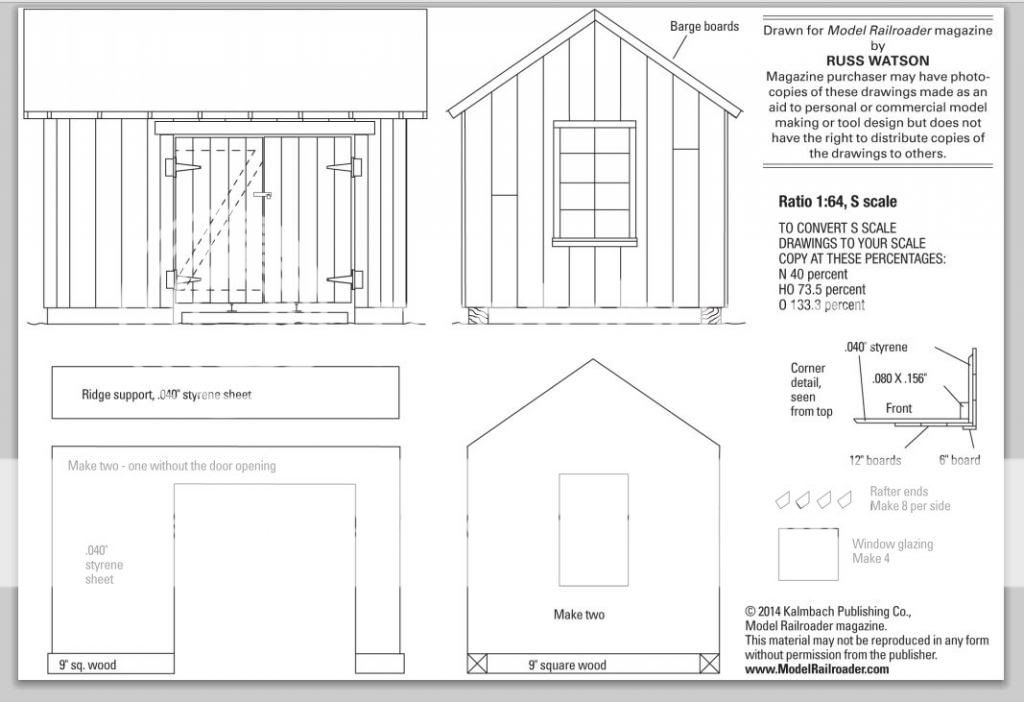

here;s the plans from the magazine originally in S scale but i did mine in G 1/24th scale by blowing up the plans on my computers screen and then measuring it in g scale …then i added to its size

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3217_zps8e0cc885.jpg?t=1393298364

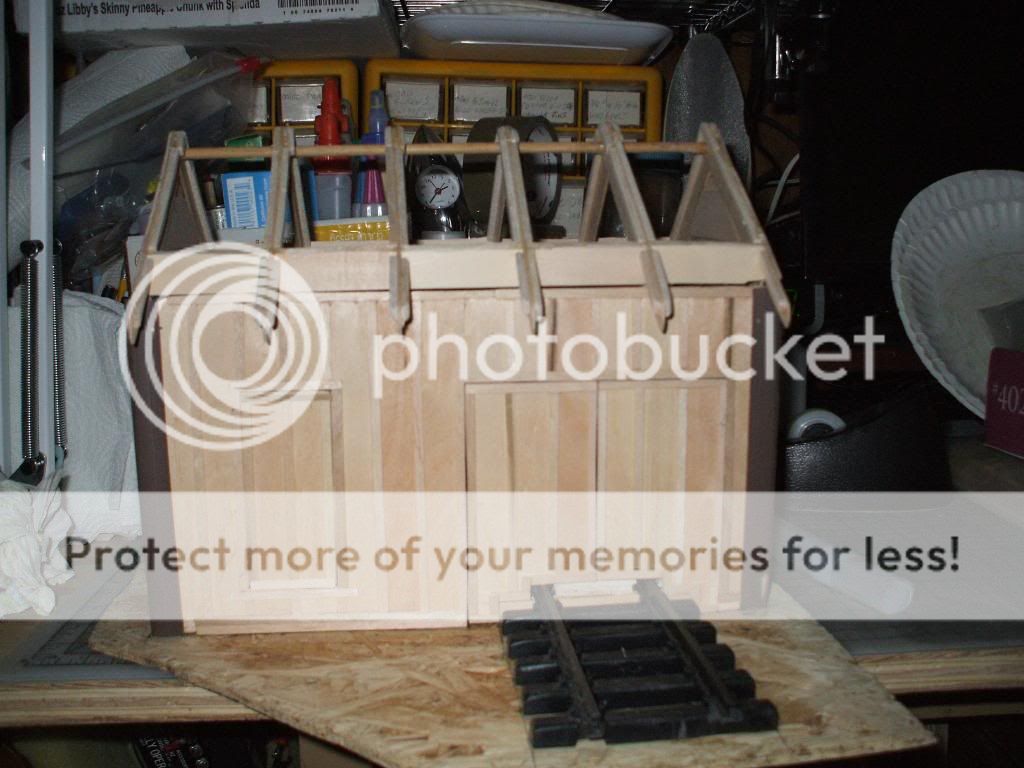

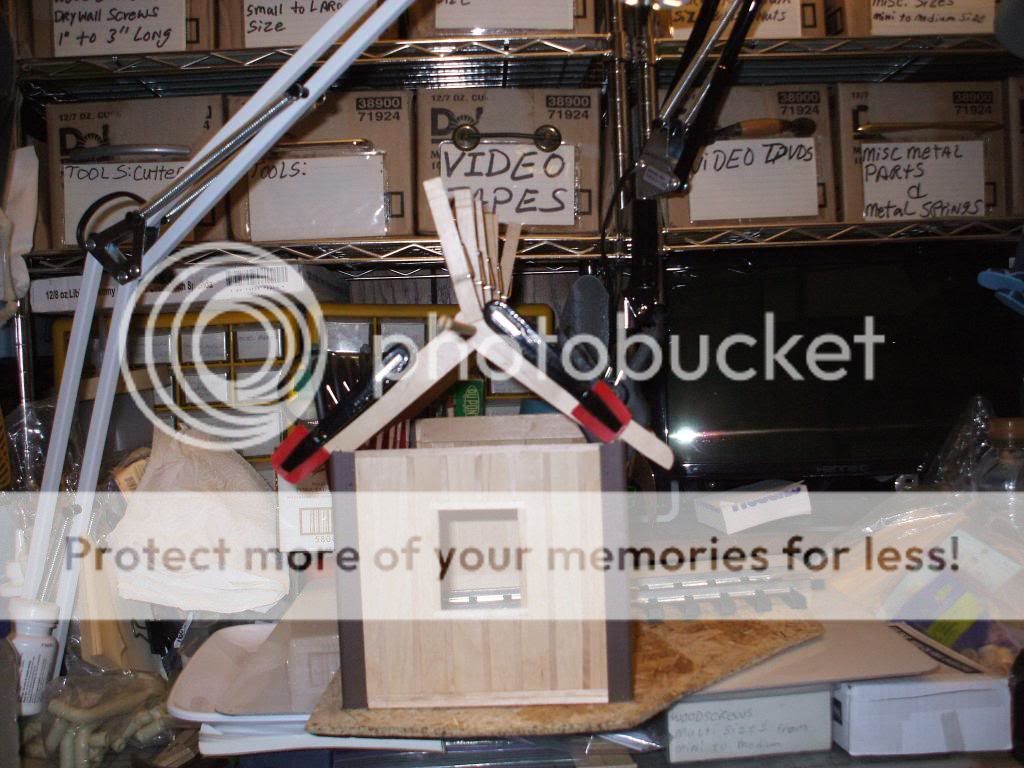

here it is with the roof beams clamped to it from the side window view

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3216_zps67af6b95.jpg?t=1393298327

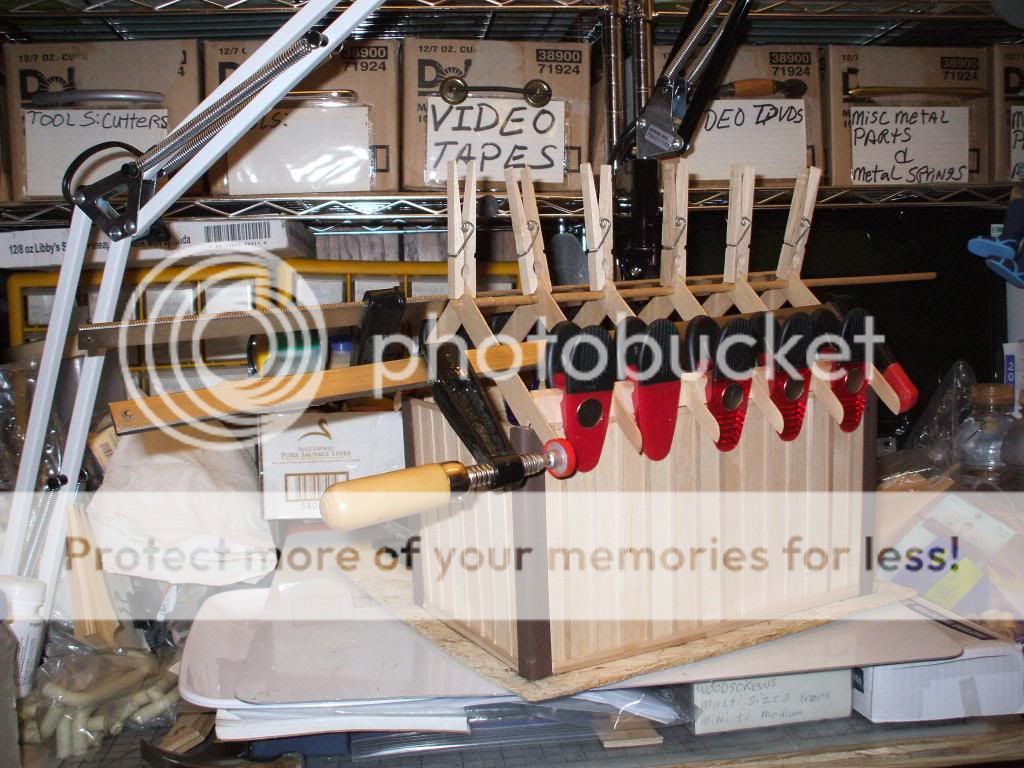

here is the back and side view of the shed roof beams clamped up

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3215_zps3e1457ba.jpg?t=1393298387

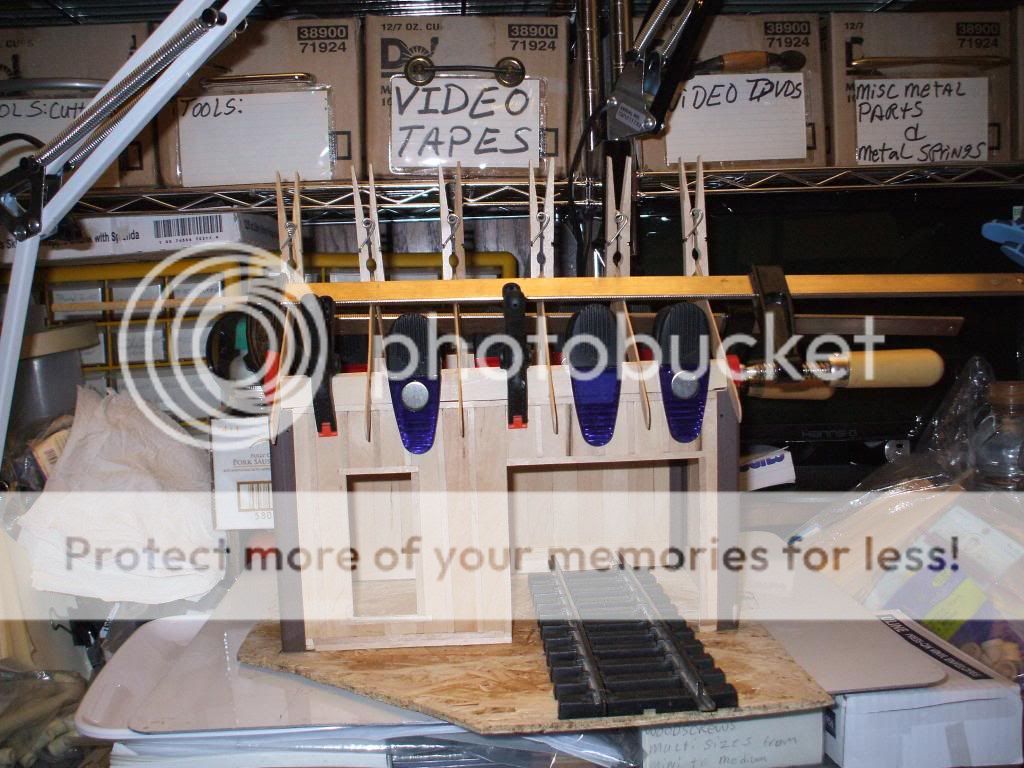

here is the front view clamped up and the doors cut out with trim and mounted to the base

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3220_zpsc5de2623.jpg?t=1393298622

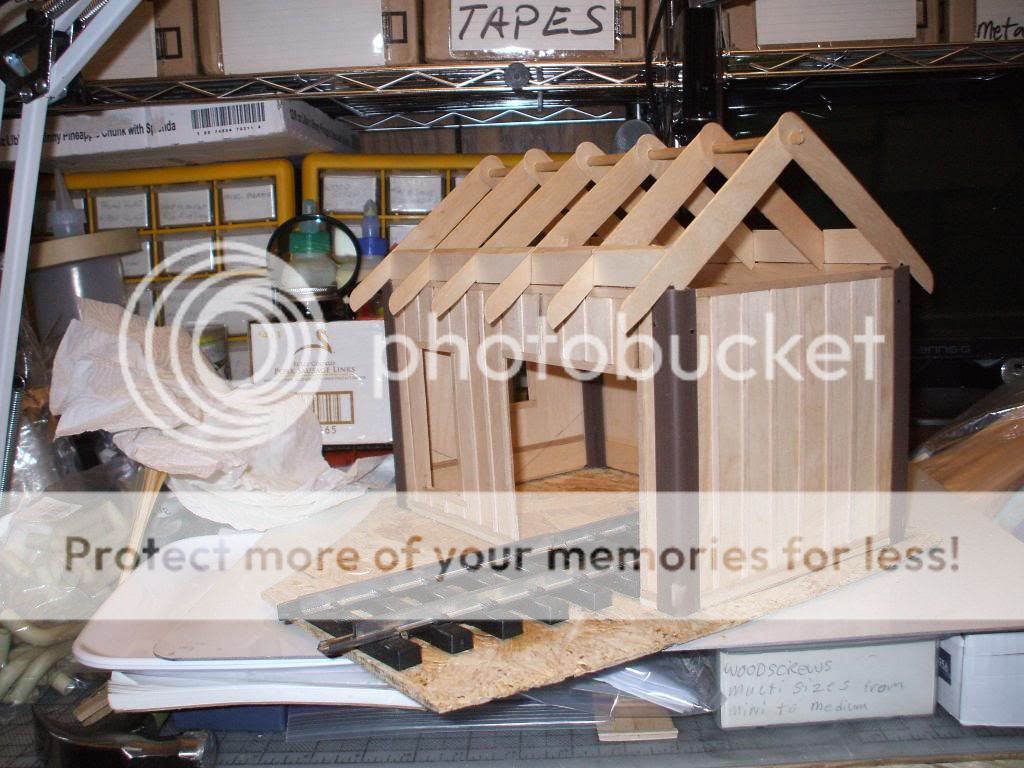

here is the side view with clamps removed and waiting for the doors to be finished with base

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3221_zpsd0497b51.jpg?t=1393298670

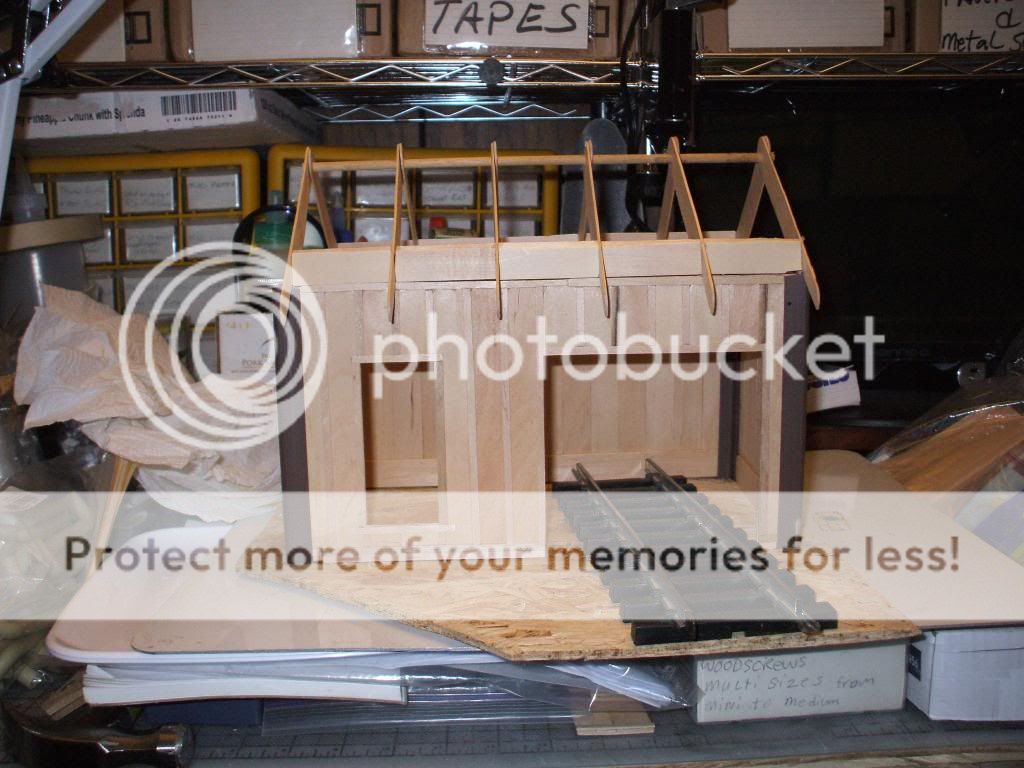

here;s the front view of hand car shed …my version waiting for the roof and other details like the doors and the side window

and thats the project so far …

#2

Clever use of craft sticks. Nice looking shed.

#3

Boyd, when your in photobuck, left click on the pic and select, Copy Image

then paste it here

MY G SCALE 1/24TH HAND CAR SHED photo DSCF3205_zps17187cdc.jpg

#4

A very nice model. What are the plastic corner pieces you used to make the great right angles?

Doc Tom

#5

paste the photo using the little tree icon in the toolbar at the top of where you are typing.

That is a very clean looking build. You could have entered it in the build challenge with the required Daves’ Door.
What did you use for the corner bracing?

Will this be going outdoors? If so you will want to seal that wood really well against the elements.

Nice build.

#6

those plastic corners look like outside corners for wood paneling from HD. nice work keep the pics. coming.

Richard

#7

hello guys … mark …i did just like you said to doo but it did not work as you saw … now as for the corners i got them from Meisel hardware specialties at www.meiselwoodhobby.com

#8

ok here is the item …its a corner channel … listed here http://www.meiselwoodhobby.com/Products/ViewProduct.aspx?ID=12681&Path=2942

its 3 feet long and its $3.99 each it works great with the wood slats i buy its can use any wood or plastic that is 1/8th of an inch thick or less …it works great

#9

http://www.meiselwoodhobby.com/Images/Products/Main/12681.jpg

#10

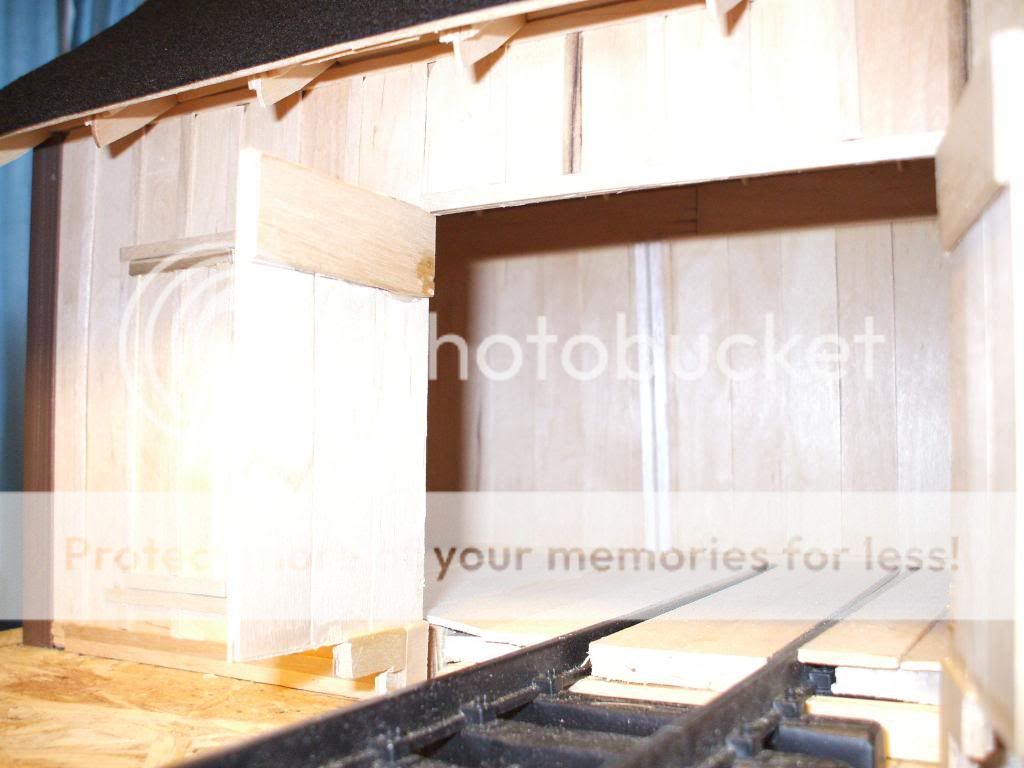

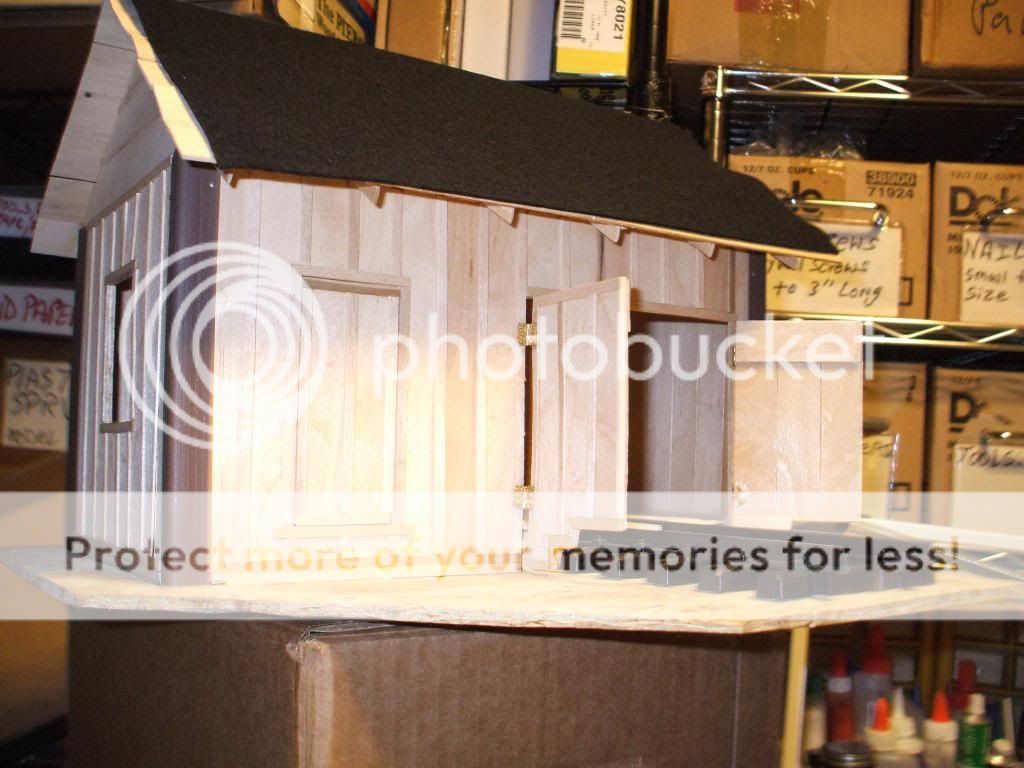

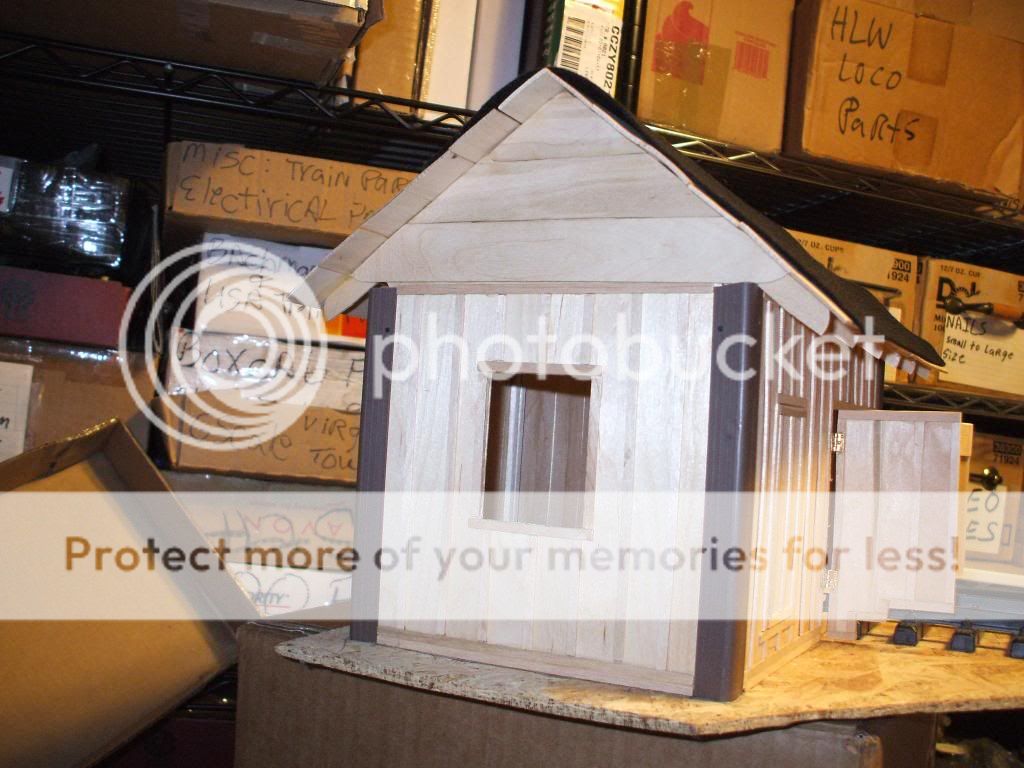

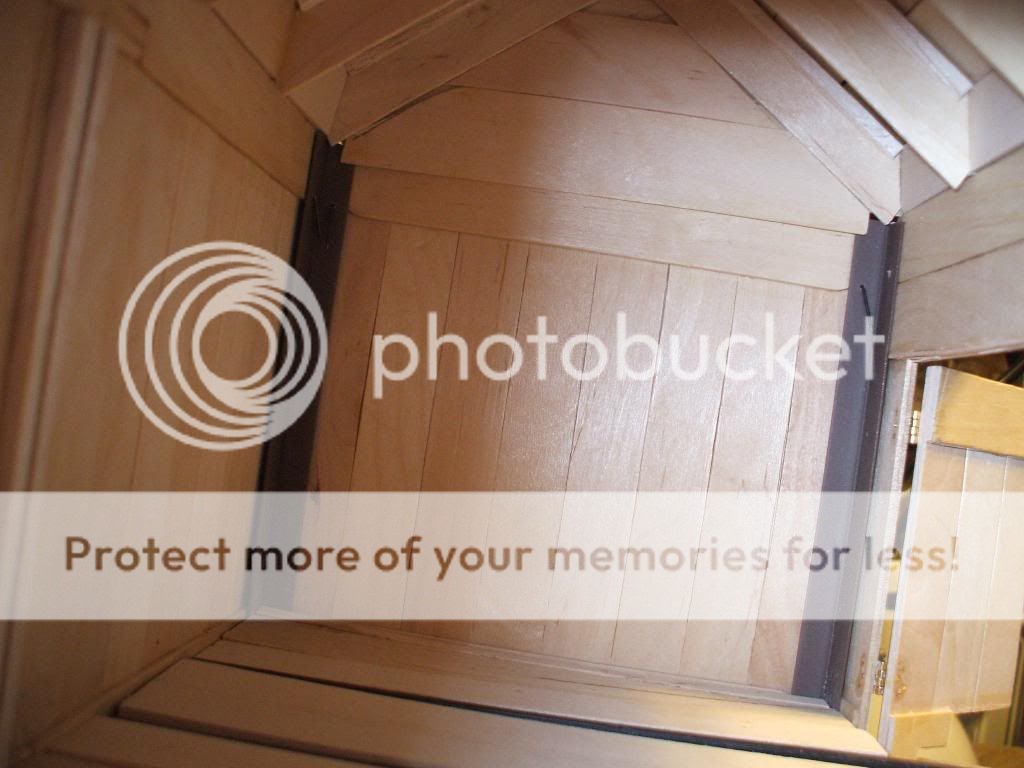

HERE IS SOME UPDATED PHOTOS…

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3215_zps3e1457ba.jpg

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3216_zps67af6b95.jpg

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3233_zps245c8726.jpg

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3251_zps537d570a.jpg?t=1397099819

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3253_zps7665beed.jpg?t=1397100436

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3254_zpsb31d12cd.jpg

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3255_zps422cf182.jpg

#11

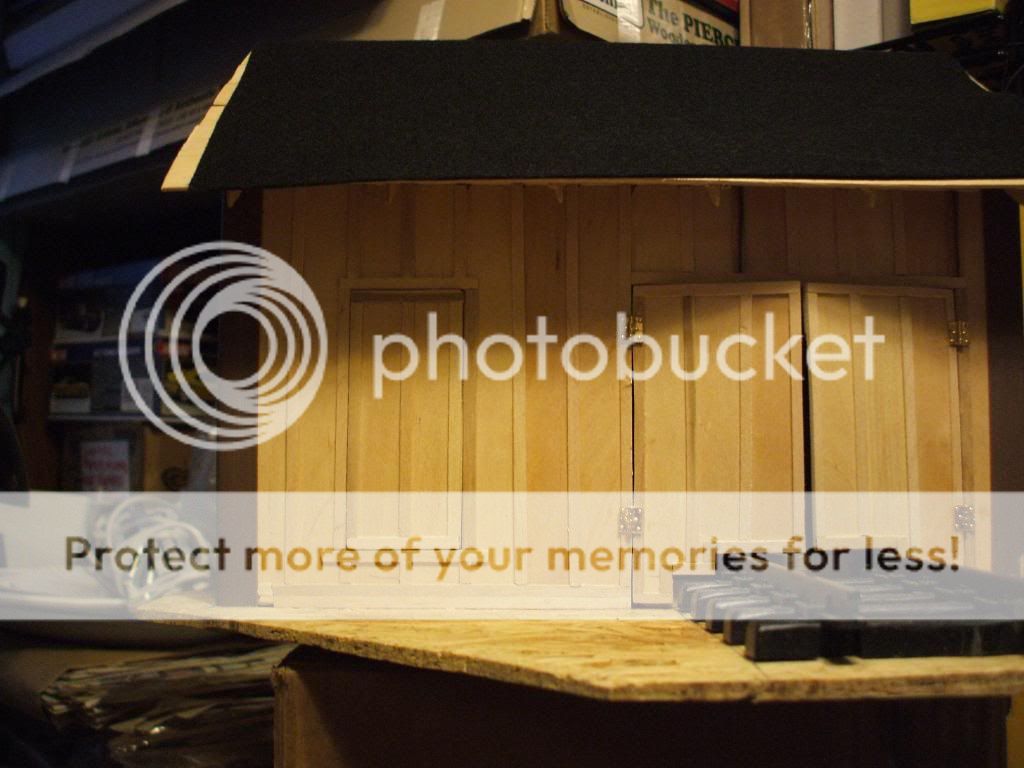

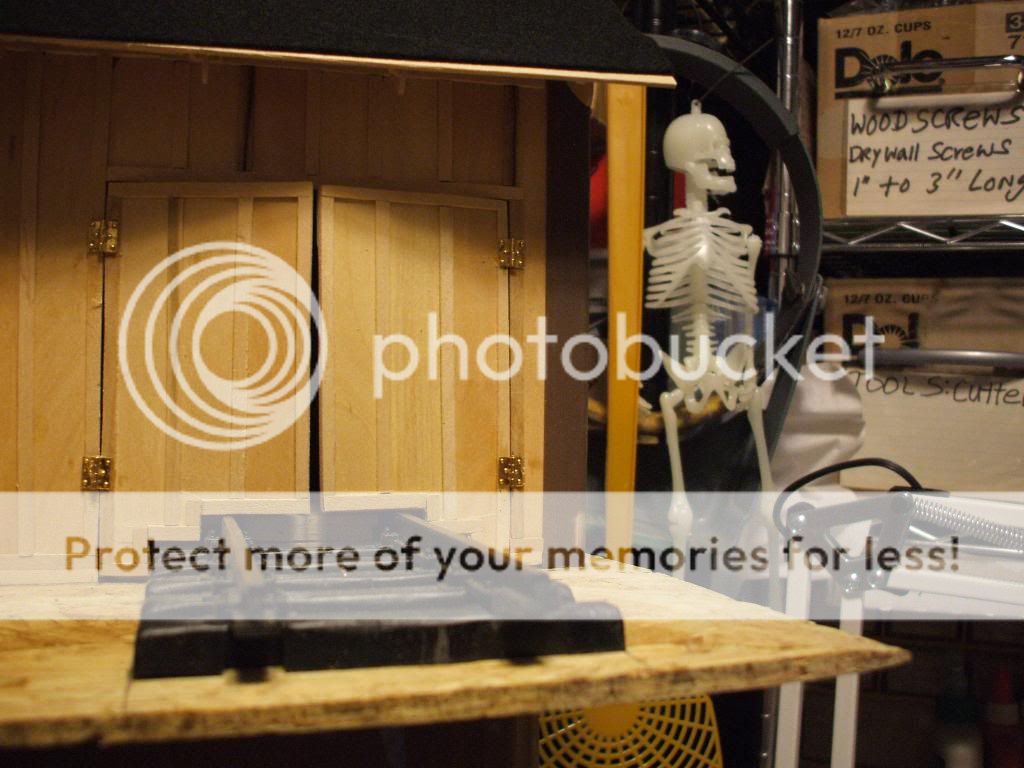

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3256_zpsb0c09d74.jpg?t=1397099933

http://i564.photobucket.com/albums/ss87/sewjoe49/DSCF3257_zps0e5bcc46.jpg?t=1397099969

I STILL NEED TO PUT ON THE HINGES ON THE SMALL DOOR AND PUT HANDELS ON ALL THREE DOORS AND MAKE THE WINDOW .THEN ON TO THE SHINGLES AND INNER WALL … AND I MAY PAINT IT …THEN I WILL BE DONE WITH THIS ONE
