Trying to find a manual to help with identifying the power distribution board on an Accucraft C&S 2-8-0. I need to make sure I get things connected correctly as I am planning to convert to battery/rc operation. There is also a Phoenix 2K2 sound board connected, with back up battery, but I have got that bit covered.

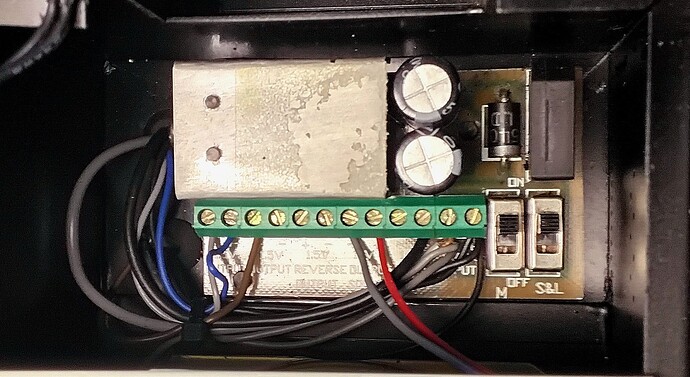

I have done an earlier K-27 but that just had a simple connector bar under the cab with separate voltage regulators for the fitted incandescent lights. Any help would be most appreciated. Picture of board, sited in tender. Thanks Max.
